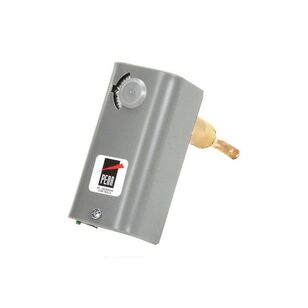

Johnson Controls A19ABC-24C Temperature Control, 120 - 277 VAC, 16 A at 120 VAC, 8 A at 240 VAC Full Load, 1 Stages
Johnson Controls A19ABC-24C Temperature Control, 120 - 277 VAC, 16 A at 120 VAC, 8 A at 240 VAC Full Load, 1 Stages
Johnson Controls Penn Temperature Control, Series: A19, 16 A at 120 VAC, 8 A at 240 VAC Full Load, 120 - 277 VAC, Configuration: SPDT, Switching Action: Open/Close on Rise, 1 Stages, 8 ft Capillary Length, Sensing Element: Bulb, 16 A Full Load and 96 A Locked Rotor at 120 VAC, 9.2 A Full Load and 55.2 A Locked Rotor at 208 VAC, 8 A Full Load and 48 A Locked Rotor at 240 VAC, 22 A Non-Inductive at 120 - 277 VAC, 125 V-A at 24 - 600 VAC Pilot Duty Contact, 1 -Switch, 3 - 12 deg F Differential, Temperature Settings: -30 to 100 deg F, Flat Surface Mounting, Galvanized Steel Enclosure, Gray, 2-1/8 in L, 4-3/8 in H, 1-13/16 in W, 140 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$348.16 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating16 A at 120 VAC, 8 A at 240 VAC Full Load
Capillary Length8
ColorGray
ConfigurationSPDT
Contact Rating16 A Full Load and 96 A Locked Rotor at 120 VAC, 9.2 A Full Load and 55.2 A Locked Rotor at 208 VAC, 8 A Full Load and 48 A Locked Rotor at 240 VAC, 22 A Non-Inductive at 120 - 277 VAC, 125 V-A at 24 - 600 VAC Pilot Duty
Differential Temperature3 - 12
Height4-3/8
IndustryHVAC
Length2-1/8
MaterialGalvanized Steel Enclosure
Mounting TypeFlat Surface
Number of Switches1
Sensing ElementBulb
SeriesA19
Stages1
Switching ActionOpen/Close on Rise
Temperature Rating140
Temperature Settings-30 to 100
Voltage Rating120 - 277
Width1-13/16
Additional Information
UL E6688, CSA LR948/4813 02
Features & Benefits
- A19 Series controls are single-stage temperature controls that incorporate environmentally friendly liquid-filled sensing elements Constant differential throughout the entire range Unaffected by cross ambient conditions Variety of sensing element styles Compact enclosure Adjustable differential (wide range) Line voltage mechanical thermostat +/- 2 deg F temperature sensitivity Convertible range adjuster Remote sensing capability
Johnson Controls A19ABC-24C Temperature Control, 120 - 277 VAC, 16 A at 120 VAC, 8 A at 240 VAC Full Load, 1 Stages
BrandRheem®
MFG #A19ABC-24C
Keller #1000497
My Part ##
Last Ordered#
$348.16 / ea
