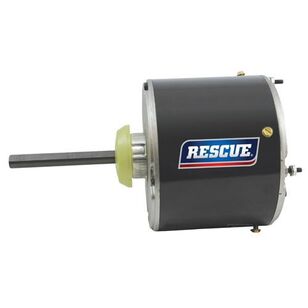

US Motors® K055CLF0586012B 5462H Condenser Fan Motor, 208 to 230 V, 2.6 A, 1/3 to 1/6 hp, 1075 rpm Speed, 300 W, 60 Hz
US Motors® K055CLF0586012B 5462H Condenser Fan Motor, 208 to 230 V, 2.6 A, 1/3 to 1/6 hp, 1075 rpm Speed, 300 W, 60 Hz
US Motors® Condenser Fan Motor, Model: K055CLF0586012B, 208 to 230 V, 2.6 A, 1/3 to 1/6 hp, 1075 rpm, 300 W, 1 ph Phase, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 48Y Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, 2 Speed, Ball Bearing, Stud Mounting, F Insulation Class, 1 Service Factor, 6 Poles, 70 deg C, 5.6 in Dia x 9.6 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$534.86 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating2.6
Bearing TypeBall
Dimensions5.6 " Dia x 9.6 " L
Frame Size48Y
Frequency Rating60
HP Rating1/3 to 1/6
IndustryHVAC
Insulation ClassF
ModelK055CLF0586012B
Motor Enclosure TypeTotally Enclosed Air Over
Mounting TypeStud
Number of Poles6
Number of Speeds2
Phase1
Power Rating300
Rotation TypeReversible
Service Factor1
Shaft Size1/2 " Dia x 5 " L
Speed Rating1075
Temperature Rating70
Voltage Rating208 to 230
Additional Information
CSA Certified|UR Listed
Features & Benefits
- Automatic reset thermal overload protection Designed for use with 370 VAC capacitor Special treated rotor for corrosion protection Extended mounting studs High-efficiency Includes lead end mounting holes for Rheem® or Trane units
US Motors® K055CLF0586012B 5462H Condenser Fan Motor, 208 to 230 V, 2.6 A, 1/3 to 1/6 hp, 1075 rpm Speed, 300 W, 60 Hz
BrandRheem®
MFG #5462H
Keller #1001082
My Part ##
Last Ordered#
$534.86 / ea
