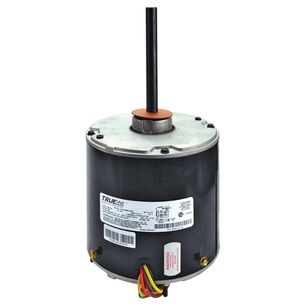

RUUD® W51-MHCJJ1-02 Universal Condenser Motor, 1/5 to 1/3 hp, 208/230 V, 60 Hz, 1 ph -Phase, 48 Frame, 825 rpm Speed
RUUD® W51-MHCJJ1-02 Universal Condenser Motor, 1/5 to 1/3 hp, 208/230 V, 60 Hz, 1 ph -Phase, 48 Frame, 825 rpm Speed
RUUD® Universal Condenser Motor, 1/5 to 1/3 hp, 208/230 V, 2.4 A, 1.4 A, 60 Hz, 1 ph, 825 rpm, 1 Speed, 48 Frame, 1/2 in Dia x 5 in L Shaft, Sleeve Bearing, Shell Band/Shell Screw/Thru-Bolt Mounting, Additional Information: 5-5/8 in Dia x 10-7/8 in L, Direct Drive Type, Reversible Rotation
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$271.52 / ea
In Stock
- Attributes
- Features & Benefits
- Marketing Information
Attributes
BrandRheem®
Additional Information5-5/8 " Dia x 10-7/8 " L, Direct Drive Type, Reversible Rotation
Amperage Rating2.4 A, 1.4 A
Bearing TypeSleeve
Frame48
Frequency Rating60
HP Rating1/5 to 1/3
IndustryHVAC
Mounting TypeShell Band/Shell Screw/Thru-Bolt
Number of Speeds1
Phase1
Shaft Size1/2 " Dia x 5 " L
Speed Rating825
Voltage Rating208/230
Features & Benefits
- PSC-type condenser fan motors Thru-bolt, shell-screw or shell-band mounting Self-aligning sleeve bearing Reversible Direct drive type 4" or 5" shaft length
Marketing Information
The TrueLine™ AC condenser fan motor is a PSC (permanent split capacitor) motor built for high humidity, with corrosion resistance and special treatments for greater durability and reliability. Suitable for residential and light commercial heating & cooling systems, these air conditioner fan motors offer three or four speeds and reversible rotation for flexible installation. The features of this condenser fan motor replacement boosts energy efficiency, reduces AC system breakdowns and delivers smooth performance.
RUUD® W51-MHCJJ1-02 Universal Condenser Motor, 1/5 to 1/3 hp, 208/230 V, 60 Hz, 1 ph -Phase, 48 Frame, 825 rpm Speed
BrandRheem®
MFG #W51-MHCJJ1-02
