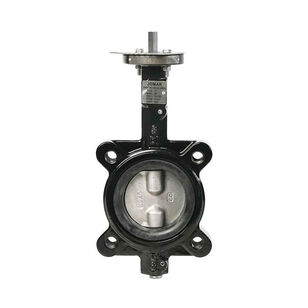

Jomar Valve® BFV-Lug Series 600-04DSEL Lug-Style Butterfly Valve, 4 in, Ductile Iron, 225 psi
Jomar Valve® BFV-Lug Series 600-04DSEL Lug-Style Butterfly Valve, 4 in, Ductile Iron, 225 psi
Jomar Valve® Lug-Style Butterfly Valve, BFV-Lug Series, 4 in Nominal, 225 psi, Water Media, Electric, Pneumatic Actuator, 7.87 in Top to Inlet Center, Ductile Iron Body, EPDM Seat, Stainless Steel Stem, Stainless Steel Disc, EPDM/Stainless Steel Trim, EPDM/NBR/Polyacetal/PTFE/PVC Softgoods, Direct Mounting, 600 Cv Flow Coefficient (Cv), -30 to 250 deg F, Contains Lead, Finish: Epoxy-Coated, 13.93 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$403.07 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandJomar Valve®
Actuator TypeElectric, Pneumatic
ApplicationFor commercial, industrial and potable water applications
Body MaterialDuctile Iron
Dimensions13.93 " H
Disc MaterialStainless Steel
Domestic/ImportDomestic
FinishEpoxy-Coated
Flow Coefficient (Cv)600
IndustryPlumbing
MediaWater
Mounting TypeDirect
Nominal Size4
Pressure Rating225
Seat MaterialEPDM
SeriesBFV-Lug Series
Softgoods MaterialEPDM/NBR/Polyacetal/PTFE/PVC
Stem MaterialStainless Steel
Temperature Rating-30 to 250
Top to Inlet Center7.87
Trim MaterialEPDM/Stainless Steel
Additional Information
CRN 0C16661.2|MSS-SP-67, API-609|NSF 61, 372
Features & Benefits
- Square stem for direct-mount Ideal for mounting pneumatic and electrical actuators Easily accepts actuator with ISO 5211 mounting flange Seat to flange seal eliminates need for flange gaskets Designed for commercial, industrial and potable water applications up to 225 psi Bi-directional for dead end service Wetted surface contain <0.25% lead content
Documents
Jomar Valve® BFV-Lug Series 600-04DSEL Lug-Style Butterfly Valve, 4 in, Ductile Iron, 225 psi
BrandJomar Valve®
MFG #600-04DSEL
Keller #1002825
