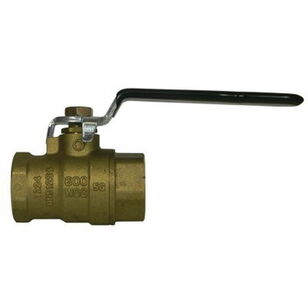

Mc.Donald® 72032T Series 5420-151 Ball Valve, 3/4 in, FNPT, Brass, 150 psi WSP, 600 psi WOG
Mc.Donald® 72032T Series 5420-151 Ball Valve, 3/4 in, FNPT, Brass, 150 psi WSP, 600 psi WOG
Mc.Donald® Ball Valve, 72032T Series, 3/4 in Nominal, FNPT Connection, Full Port, 150 psi WSP, 600 psi WOG, Gas, Oil, Water Media, 3/4 in Orifice, 2.48 in Inlet to Outlet Length, 1.85 in Top to Inlet Center, Lever Handle Operator, Brass Body, Brass Stem, Brass Trim, PTFE Packing, Steel Handle, Brass Ball, PTFE Softgoods, Lead-Free, 250 deg F, 2.48 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$36.41 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMc.Donald®
ApplicationFor commercial, industrial and residential applications
Ball MaterialBrass
Body MaterialBrass
Connection TypeFNPT
Dimensions2.48 " L
Domestic/ImportDomestic
Handle MaterialSteel
Inlet to Outlet Length2.48
MediaGas, Oil, Water
Nominal Size3/4
Operator TypeLever Handle
Orifice Size3/4
Packing MaterialPTFE
Port TypeFull
Pressure Rating150 psi WSP, 600 psi WOG
Series72032T Series
Softgoods MaterialPTFE
Stem MaterialBrass
Temperature Rating250
Top to Inlet Center1.85
Trim MaterialBrass
Additional Information
ANSI B1.20.1|cALSus Listed|cCSAus B16.44 5 PSIG|FM Approved|MSS-SP-110|UL Listed
Features & Benefits
- Blowout-proof stem
Documents
Marketing Information
A.Y. McDonald Mfg. Co. no-lead ball valves are constructed from heavy-duty no-lead brass and can be used with a full range of liquids and gases in commercial, industrial and residential applications. full-port valves allow for maximum flow with minimum pressure drop.
