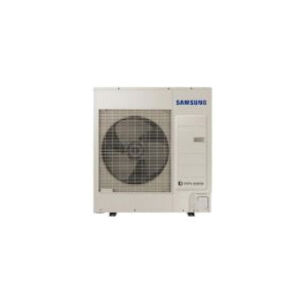

Samsung AC030MXSCCC/AA Split-Type Air Conditioner Outdoor Unit, 208-230 V, 2.7/13.1/21 A, 30000 Btu/hr Cooling, Steel
Samsung AC030MXSCCC/AA Split-Type Air Conditioner Outdoor Unit, 208-230 V, 2.7/13.1/21 A, 30000 Btu/hr Cooling, Steel
Samsung Split-Type Air Conditioner Outdoor Unit, 208-230 V, 2.7/13.1/21 A, 60 Hz, 1 ph Phase, 30000 Btu/hr Cooling, 671 cfm, 724 cfm, 777 cfm Heating CFM Rating, 2754 cfm Cooling CFM Rating, 10.2 EER Rating, 19.7 SEER, 3/8 in Liquid Line, 5/8 in Suction Line, 24 A Fuse Rating, 52 dBA Heating Sound Level, 52 dBA Cooling Sound Level, Wall Mounting, Steel, Finish: Galvanized/Powder-Coated, -40 to 115 deg F Cooling Operating Temperature, 37 in Overall Width, 39-11/16 in Overall Height, Additional Information: 13 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,576.96Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information13 " D
Amperage Rating2.7/13.1/21
Cooling BTU Rating30000
Cooling CFM Rating2754
Cooling Operating Temperature-40 to 115
Cooling Sound Level52
EER Rating10.2
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating24
Heating CFM Rating671 cfm, 724 cfm, 777 cfm
Heating Sound Level52
Liquid Line Size3/8
MaterialSteel
Mounting TypeWall
Overall Height39-11/16
Overall Width37
Phase1
SEER Rating19.7
Suction Line Size5/8
Voltage Rating208-230
Warranty7 Year Compressor, 5 Year Parts
Shipping Dimensions (L x W x H)16.8" x 39.2" x 43.1"
Additional Information
AHRI Certified|ETL Listed|UL 60335-2-40
Features & Benefits
- Wall-mounted evaporator Low ambient cooling to -40 deg C The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire Auto restart after power loss The outdoor unit shall have a snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit The outdoor unit shall have a night time quiet mode option to reduce operating sound during the night The outdoor unit shall be galvanized steel with a baked on powder-coated finish for durability The outdoor unit heat exchanger shall be mechanically bonded aluminum fin to copper tube Control signal shall be a DDC-type signal Advanced configuration options for high room temperature alerts using MIM-B14 external contact control to enable a backup system and/or to notify a BMS Interconnect control wire between outdoor and indoor unit shall be 16 AWG x two shielded Wired controllers must be purchased separately Controls shall integrate with a BMS system The system shall integrate with the Samsung NASA Controls Solution No additional interface modules/adapters are required when connecting to Samsung NASA DVM S central control options (MIM-D01AUN, MIM-B17BUN, MIM-B18BUN, MCM-A300UN) The refrigerant shall be R-410A The compressor shall be hermetically sealed, inverter controlled, BLDC rotary Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit Soft start to reduce current demand during compressor start
