Samsung

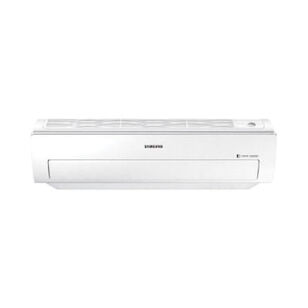

Samsung AC012MNADCH/AA Indoor Split System, 208/230 V, 10.7 A, 12000 Btu/hr Cooling, 14000 Btu/hr Heating BTU, 1 ph

Samsung AC012MNADCH/AA Indoor Split System, 208/230 V, 10.7 A, 12000 Btu/hr Cooling, 14000 Btu/hr Heating BTU, 1 ph
Samsung

Samsung AC012MNADCH/AA Indoor Split System, 208/230 V, 10.7 A, 12000 Btu/hr Cooling, 14000 Btu/hr Heating BTU, 1 ph

MFG #AC012MNADCH/AA

Item #1004171

Mfr. Part #AC012MNADCH/AA

UPC #

Samsung Indoor Split System, 208/230 V, 10.7 A, 27 W, 60 Hz, 1 ph, 12000 Btu/hr Cooling, 14000 Btu/hr Heating, 1271 cfm, 9.84 EER Rating, 18 SEER, 9.5 HSPF, Connection Type: Flared, 15 A Fuse Rating, Inverter Drive, 23/26/32/38 dBA Sound Level, Wall Mounting, Steel, Galvanized, 61 to 90 deg F Cooling, <=80 deg F Heating, 9-13/16 in Overall Length, 29-1/2 in Overall Width, 9-11/16 in Overall Height

Why Create an Account?

  • Ability to track orders
  • More Options & Savings
  • Amazing Customer Service
$1,358.64 / ea
Out of Stock
Attributes
BrandSamsung
Amperage Rating10.7
BTU Rating12000 Btu/hr Cooling, 14000 Btu/hr Heating
CFM Rating1271
Compatible Outdoor Unit ModelAC012KXADCH/AA (CXH12ADK)
Connection TypeFlared
Cooling at 95F: Maximum Capacity (BTUH)14500
Cooling at 95F: Minimum Capacity (BTUH)3400
Cooling at 95F: Rated Capacity (BTUH)12000
Drive TypeInverter
EER Rating9.84
Efficiency: COP at 47F2.44
Efficiency: EER9.84
Efficiency: HSPF9.5
Efficiency: SEER18
FinishGalvanized
Frequency Rating60
Fuse Rating15
Guaranteed Operating Voltage Range (VAC)176/254 VAC
Heating at 47F: Maximum Capacity (BTUH)16200
Heating at 47F: Minimum Capacity (BTUH)3000
Heating at 47F: Rated Capacity (BTUH)14000
HSPF Rating9.5
Indoor Unit: Drain Pipe Size Inch (mm)11/16 OD
Indoor Unit: Fan Motor FLA0.4
Indoor Unit: Fan Motor Output (W)27
Indoor Unit: Fan Motor TypeBLDC With Axial Type Fan (1)
Indoor Unit: Fan TypeBLDC with Crossflow fan (1)
Indoor Unit: Fin Gap (Inch)18
Indoor Unit: Fuse/Breaker Size (Amp)15
Indoor Unit: Heat Exchanger Tube Dia. Inch (mm)1/4
Indoor Unit: Heat Exchanger TypeAluminum Fin/Copper Tube
Indoor Unit: MCA10.7
Indoor Unit: Refrigerant ControlEEV
Indoor Unit: Sound Pressure Level dB (A)23 / 26 / 32 / 38
MaterialSteel
Model NumberAC0
Mounting TypeWall
Outdoor Unit: Airflow Rate (CFM)1271
Outdoor Unit: Compressor RLA8.1
Outdoor Unit: Compressor TypeInverter Driven, BLDC, Rotary
Outdoor Unit: Fan Motor FLA0.17
Outdoor Unit: Fan Motor Output (W)39
Outdoor Unit: Heat Exchanger Tube Dia. Inch (mm)3/8
Outdoor Unit: Heat Exchanger TypeAluminum, Flat Fin, Micro Channel
Outdoor Unit: Sound Pressure Level dB[A]48/48 (Cooling/Heating)
Overall Height9-11/16
Overall Length9-13/16
Overall Width29-1/2
Phase1
Piping: Max. Piping Height Difference Feet (m)49
Piping: Max. Piping Length Feet (m)65.6
Power Rating27
Power Supply208/230 V/1 Phase/60 Hz
Refrigerant Data: TypeR-410A
SEER Rating18
Sound Level23/26/32/38
Temperature Rating61 to 90 deg F Cooling, <=80 deg F Heating
Voltage Rating208/230
Samsung AC012MNADCH/AA Indoor Split System, 208/230 V, 10.7 A, 12000 Btu/hr Cooling, 14000 Btu/hr Heating BTU, 1 ph
Samsung AC012MNADCH/AA Indoor Split System, 208/230 V, 10.7 A, 12000 Btu/hr Cooling, 14000 Btu/hr Heating BTU, 1 ph
BrandSamsung
MFG #AC012MNADCH/AA
Keller #1004171
My Part ##
Last Ordered#
Price
$1,358.64 / ea
