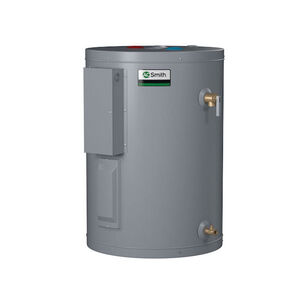

AO Smith® Dura-Power™ DEL-20 Light-Duty Lowboy Electric Water Heater, 20 gal, 50000 Btu, 6 kW, 1 ph, 208 V
AO Smith® Dura-Power™ DEL-20 Light-Duty Lowboy Electric Water Heater, 20 gal, 50000 Btu, 6 kW, 1 ph, 208 V
AO Smith® Dura-Power™ Light-Duty Lowboy Electric Water Heater, 20 gal Capacity, 50000 Btu, 6 kW, 19 gph Recovery Rate, 1 Elements, 3000 to 6000 W Element Wattage, 208 V, 1 ph Phase, FNPT Connection, 3/4 in Connection, 150 psi, Adjustable Thermostat, Copper, Finish: Baked Enamel, 110 to 170 deg F, 21-3/4 in Dia x 22-1/4 in H, 2-Wire Wiring, Zinc-Plated Sheath Element, Copper Element
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$700.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandAO Smith®
BTU Rating50000
Capacity20
Connection Size3/4"
Connection TypeFNPT
Dimensions21-3/4 " Dia x 22-1/4 " H
Element MaterialCopper
Element TypeZinc-Plated Sheath
Element Wattage3000 to 6000
FinishBaked Enamel
IndustryPlumbing
MaterialCopper
Number of Elements1
Phase1
Power Rating6
Pressure Rating150
Recovery Rate19
Temperature Rating110 to 170
Thermostat TypeAdjustable
Voltage Rating208
Wiring Type2-Wire
Additional Information
ASHRAE Compliant|CSA Certified|cULus Listed|IES 90.1-2012
Features & Benefits
- Designed for use as a recovery water heater Glass lining provides super protection against corrosion Durable commercial-grade copper heating elements Temperature controls located behind hinged control compartment door for quick, easy access Commercial-grade anode rod provides maximum tank protection from corrosion Most models convert to 3 ph or 1 ph in field for easy installation
Marketing Information
Dura-Power™ light-duty commercial electric water heaters are built to the same high quality standards as our gas models. The Dura-Power™ DEN (standard upright) and DEL (lowboy) Series is available with tank capacities from 6 through 119 gal. They can be installed for non-simultaneous and single element operation (maximum input up to 6 kW) or for simultaneous dual-element operation (maximum input up to 12 kW). A. O. Smith® offers the largest commercial product selection available, including the most specified commercial unit in the US. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10000 gal, with input range from 50000 Btu to the equivalent of 4000000 Btu. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.
