ASSE 1017 Listed, ASSE 1070, cUPC and NSF372 Certified, IAPMO

• Increase hot water capacity from the hot water tank by as much as 133% depending on storage and incoming cold water temperature Allows hot water tank to be set at higher temperature to minimize the occurrence of Legionella and other water-borne bacteria Adjustable temperature selection with lock down Advance thermal actuator for precise control Integral checks and screens prevent cross-flow and contamination 25% maximum pressure differential between hot and cold water

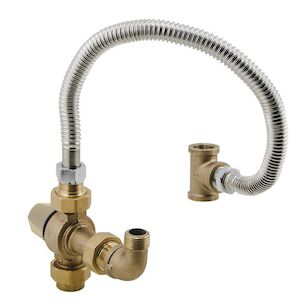

This 3/4 inch lead free thermostatic hot water mixing valve kit is designed for residential, commercial or institutional environments for supplying tempered water. This kit contains a 3/4 inch mixing valve, Model LLMMV, stainless steel hose, a tee and an elbow. The thermostatic mixing valve consists of a lead free brass body, threaded union end connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The double throttling design controls both hot and cold water supply to the mixed outlet. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar) and maximum temperature rating is 200 degrees F (93 degrees C).
