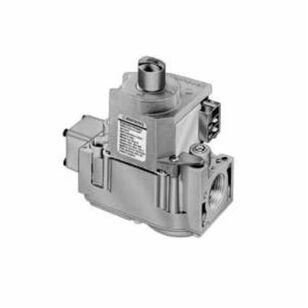

resideo VR Series VR8305Q4153T/U Dual Direct Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, 300000 Btu/hr Nominal
resideo VR Series VR8305Q4153T/U Dual Direct Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, 300000 Btu/hr Nominal
resideo Dual Direct Gas Valve, VR Series, 3/4 in Inlet, 3/4 in Outlet, NPT End, 300000 Btu/hr Nominal Capacity, Liquid Propane, Natural Gas, Direct Ignition, 0.5 psi, -40 to 175 deg F, 24 V, 50/60 Hz, 1/4 in Male Quick-Connect Electrical Connection
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$503.14Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
ApplicationFor two-stage applications
Electrical Connection1/4 " Male Quick-Connect
End TypeNPT
Frequency Rating50/60
Gas TypeLiquid Propane, Natural Gas
Ignition TypeDirect
Includes3/4 to 1/2 in Reducer Bushings and LP Conversion Kit
Inlet Size3/4
Nominal Capacity300000
Outlet Size3/4
Pressure Rating0.5
SeriesVR Series
Temperature Rating-40 to 175
Voltage Rating24
Shipping Dimensions (L x W x H)6.7" x 5.5" x 3.6"
Additional Information
CSA 112395|UL File No. MH8191
Features & Benefits
- Controls include manual valve, two-automatic operators and pressure regulator Provide two-automatic valves Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends Diaphragm operated second automatic valve opens under control of the regulator, closes if gas or power supply is interrupted Meet codes requiring dual safety shut-off Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves On-off lighting sequence All adjustments, wiring connections and pilot outlet are accessible from top of control Use VR8305 models with S89C,E,F and S87 series 5 and later
Documents
Marketing Information
Combination gas control for use with hot surface/direct spark systems in 24 V, gas fired appliances, with capacities from 30 to 415 cfh.
