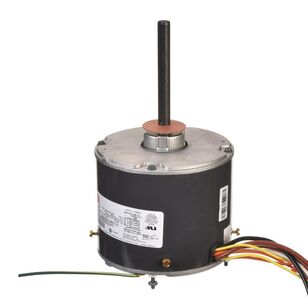

Rheem® 1860 Condenser Motor, 1/4 hp, 208/230 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
Rheem® 1860 Condenser Motor, 1/4 hp, 208/230 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
Rheem® Condenser Motor, 1/4 hp, 208/230 V, 1.7 to 1.87 A, 60 Hz, 1 ph Phase, 1075 rpm, 1 Speed, 48 Frame, 1/2 in Dia x 5 in L Shaft, Sleeve Bearing, Thru-Bolt, Shell-Band Mounting, 5-5/8 in Overall Width, Additional Information: Direct Drive, Reversible Rotation, Keyed/Flat Shaft, 5/370 uF/V Run Capacitor, 9-5/8 in L Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$396.78 / ea
In Stock
- Attributes
- Features & Benefits
- Marketing Information
Attributes
BrandRheem®
Additional InformationDirect Drive, Reversible Rotation, Keyed/Flat Shaft, 5/370 uF/V Run Capacitor, 9-5/8 " L Dimensions
Amperage Rating1.7 to 1.87
Bearing TypeSleeve
Frame48
Frequency Rating60
HP Rating1/4
IndustryHVAC
Mounting TypeThru-Bolt, Shell-Band
Number of Speeds1
Overall Width5-5/8
Phase1
Shaft Size1/2 " Dia x 5 " L
Speed Rating1075
Voltage Rating208/230
Features & Benefits
- 140 deg F ambient design Bearings have all angle thrust system Class B insulation Designed for use with 370V capacitors Extended studs 36" leads Hubless lead end Drain holes both ends Reversible rotation Automatic reset thermal overload protector Continuous duty
Marketing Information
This line of replacement permanent split capacitor condenser fans are for use in residential and commercial condensing unit fan motors. Meet manufacturer's requirements.
Rheem® 1860 Condenser Motor, 1/4 hp, 208/230 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
BrandRheem®
MFG #1860
