ASSE 1017|CSA Certified|Lead-Free Compliant|NSF 61

• Dual purpose mixing or diverting valve Constant water temperature under different operating conditions Proportional valve (control of hot and cold water) Flow reduction in seconds if cold water supply is interrupted Maintains temperature with extremely low minimum flows Temperature adjustable, tamper evident Install in any position, heat trapping not required Recirculation connection for fast response Bronze/stainless construction Wear surfaces PTFE-coated to prevent deposit build up Tapped flange connections 2-1/2 and 3 in Allen wrench for temperature adjustment included

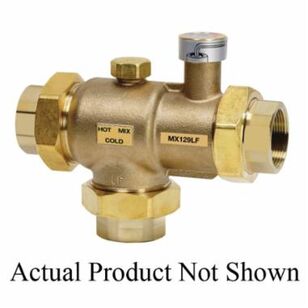

The Braukmann MX series high capacity mixing valve provides accurate control of hot water temperatures based on the mixing of hot and cold water. The valve features a PTFE-coating that increases its product life and reduces the need for callbacks. It also has a tamper evident temperature adjustment and a recirculation port that supports fast responses.
