• Durable 3/16 in steel receiver designed to meet government requirements Low inlet, vent and overflow receiver openings Double pole adjustable float switch standard on simplex units Durable float actuated mechanical alternator Close coupled pump design Quick, compact installation Bronze fitted centrifugal pump Quiet, ball-bearing-type motor with dual voltage and thermal overload protection Mechanical seal construction Stainless steel shaft Renewable bronze wearing ring Factory wired and tested pump and motor assembly 6000 sq-ft system EDR Mechanical shaft seal Wired for 115 V Drip-proof motor

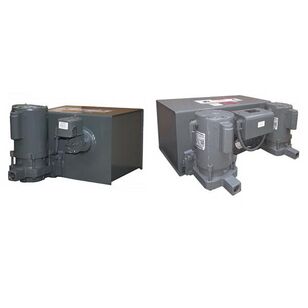

The Watchman WCS condensate units feature durable 3/16 in steel receivers designed to meet government requirements. They are supplied in 6, 9 and 14 gal receiver sizes with low inlet heights for ease of installation. Pumps are the reliable and proven design Watchman close coupled centrifugal pumps with bronze impeller, bronze wearing ring, carbon/ceramic/mechanical seal-rated to 250 deg and cast-iron housing. Motors are vertically-mounted drip-proof ball bearing design with built-in overload protection and stainless steel shafts. Pumps are controlled by heavy-duty, double pole, externally adjustable float switches. Duplex units are provided with mechanical alternators as standard for two pump control. Units are normally factory or locally stocked.
