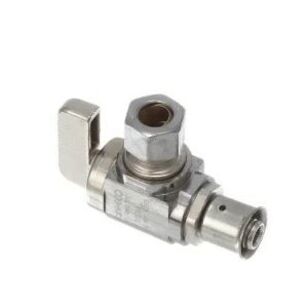

Viega PureFlow® 93511 Stop Valve, 1/2 x 1/4 in Nominal, Press x Compression, Quarter-Turn Handle Actuator, 160 psi
Viega PureFlow® 93511 Stop Valve, 1/2 x 1/4 in Nominal, Press x Compression, Quarter-Turn Handle Actuator, 160 psi
Viega PureFlow® Stop Valve, 1/2 x 1/4 in Nominal, Press x Compression Connection, 160 psi, Material Standard: ASTM F877, Brass/PTFE Trim, EPDM/FKM/PTFE Softgoods, Brass Body, Zinc Handle, Quarter-Turn Handle Actuator, Finish: Chrome-Plated, 0 to 180 deg F, 3.54 in L, Domestic/Import: Domestic, Additional Information: 3.54 in L Inlet to Outlet, 1.2 in Top to inlet Center, Angled Configuration, Brass Stem, EPDM/FKM Seal, PTFE Seat, Lead-Free
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$20.36 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandViega
Actuator TypeQuarter-Turn Handle
Additional Information3.54 " L Inlet to Outlet, 1.2 " Top to inlet Center, Angled Configuration, Brass Stem, EPDM/FKM Seal, PTFE Seat, Lead-Free
ApplicationFor use with Viega PureFlow PEX, Viega FostaPEX, or Viega Barrier PEX
Body MaterialBrass
Connection TypePress x Compression
Dimensions3.54 " L
Domestic/ImportDomestic
FinishChrome-Plated
Handle MaterialZinc
Map12.22
Material StandardASTM F877
Nominal Size1/2 x 1/4
Pressure Rating160
Softgoods MaterialEPDM/FKM/PTFE
Temperature Rating0 to 180
Trim MaterialBrass/PTFE
Shipping Dimensions (L x W x H).75" x 1.7"
Additional Information
cCSAus Certified|NSF/ANSI 61-G, 372|UPC Certified
Features & Benefits
- Easy and fast to install Factory assembled sleeve 1/4-turn operation Helps installers easily identify unpressed connections during pressure testing
Marketing Information
Viega zero-lead stop valves are available in straight and angled configurations. The valve bodies are manufactured from eco Brass® and feature PTFE seals with EPDM and FKM stem seals.
Viega PureFlow® 93511 Stop Valve, 1/2 x 1/4 in Nominal, Press x Compression, Quarter-Turn Handle Actuator, 160 psi
BrandViega
MFG #93511
Keller #1008265
