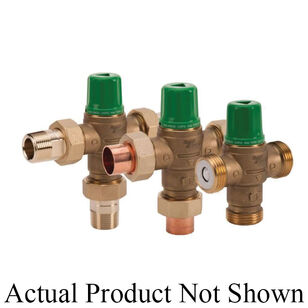

Taco Comfort Solutions® 5000 Series 5003-P3 Mixing Valve, 3/4 in, PEX, 20 gpm, 230 psi, Brass, Lead-Free
Taco Comfort Solutions® 5000 Series 5003-P3 Mixing Valve, 3/4 in, PEX, 20 gpm, 230 psi, Brass, Lead-Free
Taco Comfort Solutions® Mixing Valve, 5000 Series, 3/4 in Nominal, PEX Connection, 20 gpm Flow Rate, 230 psi, 2.3 Cv Flow Coefficient (Cv), Stainless Steel Trim, EPDM Packing, FKM Seal, Brass, +/-3 deg F Gauge Accuracy, Lead-Free, 85 to 175 deg F, 5.1 in H x 5.4 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$228.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Connection TypePEX
Dimensions5.1 " H x 5.4 " W
Flow Coefficient (Cv)2.3
Flow Rate20
Gauge Accuracy+/-3
MaterialBrass
Nominal Size3/4
Packing MaterialEPDM
Pressure Rating230
Seal MaterialFKM
Series5000 Series
Temperature Rating85 to 175
Trim MaterialStainless Steel
Additional Information
ASSE 1017|CSA B125.3|cUPC Certified|NSF/ANSI 61
Features & Benefits
- Lead-free Delivers stable mixed water temperature Tamper resistance cap Low headloss Outlet temperature strip
Marketing Information
The versatile 5000 series lead-free mixing valves (NSF 61 ASSE 1017 certified) provide the ultimate performance for domestic hot water installations. The 5000 lead-free series ASSE 1017 certification allows for domestic hot water storage at temperatures high enough to increase the effective storage capacity of a water heater, kill harmful bacteria and still be delivered at a safe 120 deg F or less. The valve's unique design and advanced thermostatic element ensures a stable mixed water temperature throughout the extended 85 to 176 deg F range.
Taco Comfort Solutions® 5000 Series 5003-P3 Mixing Valve, 3/4 in, PEX, 20 gpm, 230 psi, Brass, Lead-Free
BrandTaco Comfort Solutions®
MFG #5003-P3
Keller #1008738
My Part ##
Last Ordered#
$228.00 / ea
