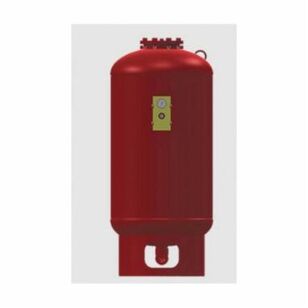

Zilmet® ZELA Series ZELA-200 Hydronic Expansion Tank With Replaceable Bladder, 53 gal Capacity
Zilmet® ZELA Series ZELA-200 Hydronic Expansion Tank With Replaceable Bladder, 53 gal Capacity
Zilmet® Hydronic Expansion Tank With Replaceable Bladder, ZELA Series, 53 gal Capacity, 1-1/2 in Connection, NPT Connection, Butyl Rubber Diaphragm, Carbon Steel, 125 psig, 240 deg F, 24 in Dia x 43 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,428.66 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZilmet®
Capacity53
Connection Size1-1/2
Connection TypeNPT
Diaphragm MaterialButyl Rubber
Dimensions24 " Dia x 43 " H
IndustryPlumbing
MaterialCarbon Steel
Pressure Rating125
SeriesZELA Series
Temperature Rating240
Shipping Dimensions (L x W x H)24" x 43" x 24"
Additional Information
ASME Certified
Features & Benefits
- Integrated pressure gauge Bladder/diaphragm integrity monitor Easy access air vent Protective guard Pre-charge of 40 psig
Marketing Information
Zilmet® USA ZELA tanks are ASME removable bladder-type pre-charged expansion tanks. They are designed to absorb the expansion forces and control the pressure in heating/cooling systems. The water/glycol mixtures is contained in a full acceptance heavy-duty butyl bladder that prevents tank corrosion and waterlogging problems. All ZELA expansion tanks can be installed vertically or horizontally.
Zilmet® ZELA Series ZELA-200 Hydronic Expansion Tank With Replaceable Bladder, 53 gal Capacity
BrandZilmet®
MFG #ZELA-200
Keller #1009069
My Part ##
Last Ordered#
$6,428.66 / ea
