Rheem®

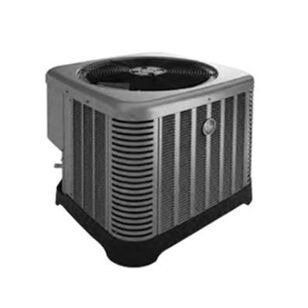

Rheem® DX-Treme CE Series RAWL-079DAZ Condensing Unit, 6.5 ton, 460 V, 77000 Btu/hr
Rheem®
Rheem® DX-Treme CE Series RAWL-079DAZ Condensing Unit, 6.5 ton, 460 V, 77000 Btu/hr
MFG #RAWL-079DAZ
Item #1009763
Mfr. Part #RAWL-079DAZ
UPC #662021458392
Rheem® Condensing Unit, RAWL Series, 079DAZ Model, 6.5 ton Nominal Capacity, 77000 Btu/hr BTU Rating, 460 V Voltage Rating, 19 A Amperage Rating, 22.86 kW Wattage, 1/2 hp Rating, 3500 rpm Rotational Speed, 60 Hz Frequency Rating, 3 ph Phase, 5700 cfm Rating, 11.5 EER Rating, R-410A Refrigerant Type, 8.6 dBA Sound Level, 28.38 sq-ft Face Area, 22 FPI Fins per Inch, Steel, Galvanized/Powder-Coated, 35-3/4 in L x 35-3/4 in W x 45 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9,945.32 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating19
ApplicationFor commercial air conditioners
BTU Rating77000
CFM Rating5700
Color/FinishGalvanized/Powder-Coated
Dimensions35-3/4 " L x 35-3/4 " W x 45 " H
EER Rating11.5
Face Area28.38
FinishGalvanized/Powder-Coated
Fins per Inch22
Frequency Rating60
HP Rating1/2
IndustryHVAC
MaterialSteel
Model079DAZ
Nominal Capacity6.5
Phase3
Refrigerant TypeR-410A
Rotational Speed3500
SeriesRAWL Series
Sound Level8.6
Voltage Rating460
Wattage22.86
Additional Information
AHRI Certified|C/US UL Listed
Features & Benefits
- New composite base pan dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Powder-coat paint system for a long-lasting professional finish Scroll compressor uses 70% fewer moving parts for higher efficiency and increased reliability Modern cabinet aesthetics increased curb appeal with visually appealing design Curved louver panels provide ultimate coil protection, enhance cabinet strength and increased cabinet rigidity Optimized fan orifice-optimizes airflow and reduces unit sound Rust-resistant screws-confirmed through 1500 hr salt spray testing PlusOne™ expanded valve space-3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access PlusOne™ triple service access-15 in W, industry leading corner service access makes repairs easier and faster The two-fastener removable corner allows optimal access to internal unit components Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Diagnostic service window with two-fastener opening provides access to the high and low-pressure External gauge port access allows easy connection of low loss gauge ports 35% fewer cabinet fasteners and fastener-free base allow for faster access to internal components and hassle-free panel removal Service trays-hold fasteners or caps during service calls QR code-provides technical information on demand for faster service calls Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire Low ambient control-a pressure sensitive fan cycling control allows operation of units down to 0 deg F High-pressure control-manual reset control deactivates system if abnormally high-pressure occurs low-pressure control automatic reset control deactivates system if abnormally low-pressure or refrigerant loss occurs
