ASME A112.1070|ASSE 1070|CSA B125.70|NSF/ANSI/CAN 61, 372

• Sleek, compact design and included purpose built mounting bracket provides for a clean and secure installation Accurate temperature control with flows as low as 0.25 gpm (0.94 Lpm) for increased user comfort and convenience, especially with sensor faucets Integrated inlet check valves prevent cross contamination Serviceable inlet strainer screens prevent dirt and debris from blocking the valve Robust, low complexity construction - superior reliability Mixed outlet flow of water reduces to a trickle in case of cold-water supply failure, providing greater end user safety Every valve is tested for performance on an automated testing station during the assembly process

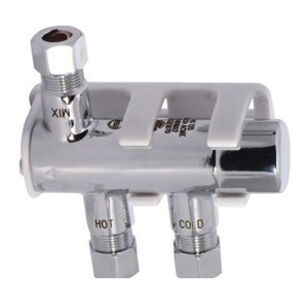

The HG135 is a sleek and compact point-of-use mixing valve designed to assist in the prevention of scalding. It features a superior, fast-acting thermostatic element that provides stable operation at flow rates as low as 0.25 gpm (0.95 Lpm). The Heatguard 135 also reduces the outlet flow to a trickle in the event of a cold-water supply failure. The valve inlets and outlet connections are standard 3/8 in supply line compression connections for use with 3/8 in OD tube. The inlets of the valve feature check valves to prevent cross contamination as well as serviceable strainer screens to prevent the valve from being clogged with dirt or debris. Each valve includes a purpose built mounting bracket and hardware to neatly and securely fasten the valve to the wall. The compact design and pleasant aesthetics allow for this valve to easily be fit under or behind a single basin. Adjustable outlet temperature range 100 to 120 deg F (38 to 49 deg C).
