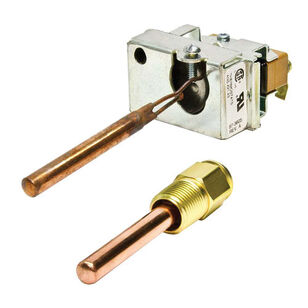

Weil-McLain® 510-312-250 Temperature Control, 120/240 VAC
Weil-McLain® 510-312-250 Temperature Control, 120/240 VAC
Weil-McLain® Temperature Control, 8 A at 120 VAC, 4 A at 240 VAC Full Load, 48 A at 120 VAC, 24 A at 240 VAC Locked Rotor, 120/240 VAC, 0.25 A mV at 0.25 - 12 VDC, Full Load: 8 A at 120 VAC, 4 A at 240 VAC, Locked Rotor: 48 A at 120 VAC, 24 A at 240 VAC Contact, 3 in H, 140 - 240 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$171.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWeil-McLain®
Amperage Rating8 A at 120 VAC, 4 A at 240 VAC Full Load, 48 A at 120 VAC, 24 A at 240 VAC Locked Rotor
Contact Rating0.25 A mV at 0.25 - 12 VDC, Full Load: 8 A at 120 VAC, 4 A at 240 VAC, Locked Rotor: 48 A at 120 VAC, 24 A at 240 VAC
Height3
IndustryHydronics
Temperature Rating140 - 240
Voltage Rating120/240
Additional Information
UL File MP466, Guide MBPR, CSA File LR1620, Guide 400-E-O, AGA, UN 1294, TOLUENE, 3, II
Features & Benefits
- 1-1/2 in D insulation 1/2 in well connection Mount using 1/4 in NPT female threads or surface-mount through base of case High limit aquastat controller has adjustable setpoint Liquid fill in sensing element expands as the boiler temperature rises At the set point temperature, a diaphragm-actuated snap switch breaks the power supply to the burner primary control 30 deg F differential Includes siphon loop
Documents
Weil-McLain® 510-312-250 Temperature Control, 120/240 VAC
BrandWeil-McLain®
MFG #510-312-250
Keller #1010921
