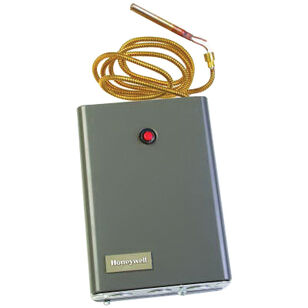

Honeywell R8182H1070/U Aquastat Control, SPST, Junction Box Mounting
Honeywell R8182H1070/U Aquastat Control, SPST, Junction Box Mounting
Honeywell Aquastat Control, 120 VAC, 60 Hz, 200 psi on Immersion Well, 100 psi Direct Immersion, Full Load: 4.4 A at 120 VAC, Locked Rotor: 26.4 A at 120 VAC Contact, SPST, 9 W, Junction Box Mount, 110 to 220 deg F Low, 130 to 240 deg F High Limit, 250 deg F Maximum at Element, 10 to 25 deg F Adjustable Low/Circulator, 10 deg F Fixed High Limit Differential, 0 to 95% RH Non-Condensing Humidity, 5-1/4 in W x 7-1/8 in H x 3-7/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,736.03Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
Brandresideo
Contact ConfigurationSPST
Contact RatingFull Load: 4.4 A at 120 VAC, Locked Rotor: 26.4 A at 120 VAC
Differential Temperature10 to 25 deg F Adjustable Low/Circulator, 10 deg F Fixed High Limit
Dimensions5-1/4 " W x 7-1/8 " H x 3-7/16 " D
Frequency Rating60
Humidity Rating0 to 95% RH Non-Condensing
IndustryHVAC
Mounting TypeJunction Box
Power Consumption9
Pressure Rating200 psi on Immersion Well, 100 psi Direct Immersion
Temperature Rating110 to 220 deg F Low, 130 to 240 deg F High Limit, 250 deg F Maximum at Element
Voltage Rating120
Additional Information
3|CSA LR95329-1 Certified|File MP268|II|Section 1|TOLUENE|UL Listed|UN 1294|Volume 37
Features & Benefits
- Capable of zone control with zone valves Circulator zone control with ZC and ZR terminals on R8182H flame failure during the running cycle results in a 45 sec attempt to restart If unsuccessful, safety shut-off occurs, requiring manual reset before burner can be restarted R8182H-mount on 4 x 4 in junction box and include 5 ft armored capillary with remote sensor C554A cadmium sulfide flame detector and 24 VAC thermostat required Includes auxiliary ZC and ZR terminals may be used to provide circulator zone control through an R845A switching relay, heat-conductive compound and horizontal case 45 sec safety switch timing 0.2 A anticipator setting 1-1/2 in D insulation 360 V-A ignition electrical ratings Combination protector relay primary control and aquastat controller Immersion type aquastat controller and oil burner primary control provides high limit and low limit/circulator control for oil-fired hydronic heating systems
Honeywell R8182H1070/U Aquastat Control, SPST, Junction Box Mounting
Brandresideo
MFG #R8182H1070/U
Keller #101184
