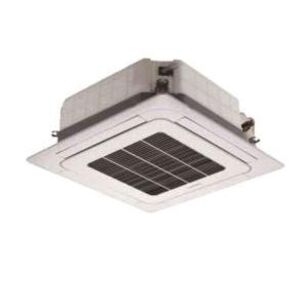

Samsung DVM S Series AM024FN4DCH/AA 4-Way Cassette, 208 - 230 V, 0.3 A, 24000 Btu/hr Cooling, 27000 Btu/hr Heating BTU
Samsung DVM S Series AM024FN4DCH/AA 4-Way Cassette, 208 - 230 V, 0.3 A, 24000 Btu/hr Cooling, 27000 Btu/hr Heating BTU
Samsung 4-Way Cassette, Series: DVM S Series, 208 - 230 V, 0.3 A, 40 W, 60 Hz, 1 ph Phase, 3 Fan Speeds, 24000 Btu/hr Cooling, 27000 Btu/hr Heating, 618 cfm, Flared Connection, 3/8 in, 5/8 in Connection, R-410A Refrigerant, 36 dBA, 35 dBA, 34 dBA Sound Level, Polystyrene/Steel, Finish: Galvanized, 33-1/16 in Overall Length, 33-1/16 in Overall Width, 8-1/32 in Overall Height, For Use With: Samsung DVM S Water and DVM S Eco Systems, Additional Information: 2013 Version, Indoor Unit, Deluxe Feature, Heat Pump and Heat Recovery Mode
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,712.88Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional Information2013 Version, Indoor Unit, Deluxe Feature, Heat Pump and Heat Recovery Mode
Amperage Rating0.3
BTU Rating24000 Btu/hr Cooling, 27000 Btu/hr Heating
CFM Rating618
Connection Size3/8 ", 5/8 "
Connection TypeFlared
FinishGalvanized
Frequency Rating60
MaterialPolystyrene/Steel
Number of Fan Speeds3
Overall Height8-1/32
Overall Length33-1/16
Overall Width33-1/16
Phase1
Power Rating40
Refrigerant TypeR-410A
SeriesDVM S Series
Sound Level36 dBA, 35 dBA, 34 dBA
Suitable For Use WithSamsung DVM S Water and DVM S Eco Systems
Voltage Rating208 - 230
Additional Information
ETL Listed|UL 1995
Features & Benefits
- Electro-static, washable, pleated filters as standard (included with fascia panel) Built in condensate pump with maximum 29" lift, check valve, and float switch that disables indoor unit during overflow detection Knock-out for outside air capability Fascia panel shall have LED indicator lights and 4 motorized louvers with independent control (32 deg - 65 deg louver control range) High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan is a single turbo type
Documents
Marketing Information
With its newly improved design, 4 Way Cassette supports a clean, aesthetically appealing atmosphere and adds a sense of sophistication to work and living spaces.
Samsung DVM S Series AM024FN4DCH/AA 4-Way Cassette, 208 - 230 V, 0.3 A, 24000 Btu/hr Cooling, 27000 Btu/hr Heating BTU
BrandSamsung
MFG #AM024FN4DCH/AA
Keller #1013650
