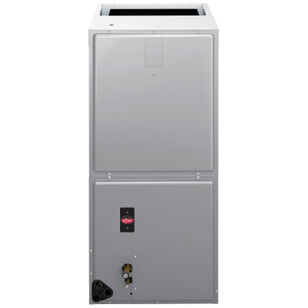

WeatherKing® WH1P6024STANJA Air Handler With TEV Metering, 5 ton, 60000 Btu/hr BTU, 1800 cfm, 208 to 240 VAC, 17.58 kW
WeatherKing® WH1P6024STANJA Air Handler With TEV Metering, 5 ton, 60000 Btu/hr BTU, 1800 cfm, 208 to 240 VAC, 17.58 kW
WeatherKing® Air Handler, WH1P Series, 6024ST Model, 5 ton Nominal Capacity, 60000 Btu/hr BTU Rating, 208 to 240 VAC Voltage Rating, 5.2 A Circuit, 7 A Minimum Circuit Amperage Rating, 17.58 kW Wattage, 3/4 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1800 cfm Rating, 15 SEER Rating, Connection Type: 3/8 in Sweat Liquid, 7/8 in Sweat Vapor, R-410A Refrigerant Type, 15 A Fuse Rating, 1 Number of Stages, Steel, Pre-Painted, 24-1/2 in W x 21-11/16 in D x 55-1/2 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,573.77 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWeatherKing®
Amperage Rating5.2 A Circuit, 7 A Minimum Circuit
ApplicationFor upflow, downflow, horizontal left and horizontal right applications
BTU Rating60000
CFM Rating1800
Connection Type3/8 " Sweat Liquid, 7/8 " Sweat Vapor
Dimensions24-1/2 " W x 21-11/16 " D x 55-1/2 " H
FinishPre-Painted
Frequency Rating60
Fuse Rating15
HP Rating3/4
IndustryHVAC
MaterialSteel
Model6024ST
Nominal Capacity5
Number of Stages1
Phase1
Refrigerant TypeR-410A
SEER Rating15
SeriesWH1P
Voltage Rating208 to 240
Wattage17.58
Additional Information
AHRI Certified, ISO 9001:2015, C/US UL Listed
Features & Benefits
- Attractive pre-painted cabinet exterior, rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation mechanically retained in blower compartment for excellent thermal and sound performance Four leg blower motor mount, blower housing with controls, motor and blower, slide-out design for service and maintenance convenience Field convertible for vertical downflow, horizontal left hand or right hand air supply Three combustible floor base accessories fit all model sizes when required for downflow installations on combustible floors Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Expansion valve on indoor coil provides for operation with air conditioning Coils are constructed of aluminum fins bonded to internally grooved aluminum tubing Coils are tested at the factory with an extensive refrigerant leak check Coils have copper sweat refrigerant connections Coils utilize chatleff metering device connections Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Supply duct flanges provided as standard on air handler cabinet Provisions for field electrical connections available from either side or top of the air handler cabinet Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet Concentric knockouts are provided for power connection to cabinet, installer may pull desired hole size upto 2 in for 1-1/2 in conduit Front refrigerant and drain connections PSC motor 1st major Series 1st minor Series
WeatherKing® WH1P6024STANJA Air Handler With TEV Metering, 5 ton, 60000 Btu/hr BTU, 1800 cfm, 208 to 240 VAC, 17.58 kW
BrandWeatherKing®
MFG #WH1P6024STANJA
Keller #1015091
