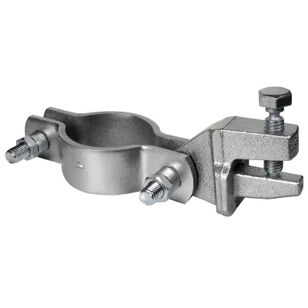

ANVIL® Fig AF730 Series 0502005716 Longitudinal and Lateral Seismic Clamp, 6 in Pipe, 1885 lb Load, Carbon Steel, Plain
ANVIL® Fig AF730 Series 0502005716 Longitudinal and Lateral Seismic Clamp, 6 in Pipe, 1885 lb Load, Carbon Steel, Plain
ANVIL® Seismic Clamp, Series: Fig AF730 Series, 6 in Pipe, 1885 lb Load Capacity, Carbon Steel, Plain, 13.2 in Overall Length, For Use With: Mega-Flow SCH 10/SCH 40 Service Pipe
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$204.66 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSCI®
FinishPlain
Load Capacity1885
MaterialCarbon Steel
Overall Length13.2
Pipe Size6
SeriesFig AF730 Series
Suitable For Use WithMega-Flow SCH 10/SCH 40 Service Pipe
Additional Information
ANSI/FM 1950-16|ANSI/UL 203A|ASCE 7|ASTM A153|cULus Listed|FM 1950-13|IBC Listed|MSS SP-127|NFPA 13
Features & Benefits
- Torque Off setscrew and nuts provide a visual indication that the desired installation torque values have been achieved Eliminates brace member eccentricity by concentrically loading 1 in and DN25 brace pipes
Documents
Marketing Information
A seismic clamp designed to connect a piping system to a brace member. The AF730 rigidly braces piping systems subjected to horizontal, longitudinal and lateral seismic loads. The AF730 may also be installed to rigidly brace piping systems subjected to vertical seismic loads.
