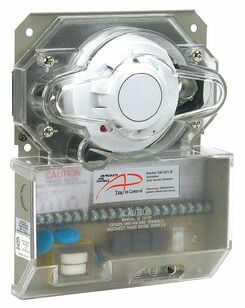

RHEPTS AC SM-501-P SMOKE DETECTOR PHOTOELECTRIC
RHEPTS AC SM-501-P SMOKE DETECTOR PHOTOELECTRIC
These smoke detectors are part of a complete fire detection and alarm system in a facility. They capture and test samples of air for the presence of smoke. When integrated into a larger system, they trigger alarms to notify occupants and shut down air handling systems to prevent the spread of smoke.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$387.86 / ea
In Stock
- Attributes
Attributes
BrandRheem®
AC Contact Rating16 mA @ 230V; 32 mA @ 115V; 74 mA @ 24V
Alert TypeLight
Body ColorGray
Compatible with SeriesWP-1 Weatherproof Enclosure
Current Rating16.0 mA @ 230V AC
DC Contact Rating56 mA @ 24V
DetectsSmoke
Display Qty1
Display Sell UOMEA
Humidity Operating Range10% to 85% RH
Includes7 in Exhaust Tube; Mounting Template; Sampling Tube End Cap; Test Magnet
Includes Mounting HardwareYes
MaterialPolycarbonate
Mounting LocationDuct
Operating Temperature - Maximum140 °F
Operating Temperature - Minimum32 °F
Overall Height2.25 "
Overall Width7.25 "
Power SourceHardwired
Product DescriptionThese smoke detectors are part of a complete fire detection and alarm system " a facility. They capture and test samples of air for the presence of smoke. When integrated into a larger system, they trigger alarms to notify occupants and shut down air hand
Product TypeSmoke Detector
Sensor TypePhotoelectric
ShapeRectangular
StandardsCSFM; cUL; MEA; UL; UL 268A; ULC S52
Visual Alert TypeAlarm Red; LED Flashing
Voltage Rating115V AC
RHEPTS AC SM-501-P SMOKE DETECTOR PHOTOELECTRIC
BrandRheem®
MFG #SM-501-P
Keller #1016032
