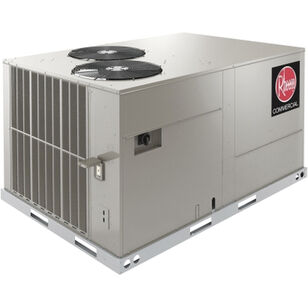

Rheem® Commercial Achiever® Series RACDZR120ADA000AAAA0 Line Packaged Air Conditioner, 10 ton Nominal, 460 VAC, 26 A
Rheem® Commercial Achiever® Series RACDZR120ADA000AAAA0 Line Packaged Air Conditioner, 10 ton Nominal, 460 VAC, 26 A
Rheem® Line Packaged Air Conditioner, Commercial Achiever® Series, Model: RACDZR, 10 ton Nominal Capacity, 118000 Btu/hr Cooling, 460 VAC, 26 A, 9.86 kW Wattage, 1/3 hp Outdoor Fan, 1075 rpm Outdoor Fan, 1725 rpm Indoor Fan Rotational Speed, 60 Hz, 3 ph Phase, Scroll Compressor, 4000 cfm, 11.2 EER Rating, 1 Speed, 1 Stages, R-410A, HFC Refrigerant, 88 dBA Sound Level, Panel Mounting, Belt Low Static Drive, Blower Motor, 25.6 sq-ft Face Area, 23 FPI Outdoor, 10.9 sq-ft Face Area, 20 FPI Indoor Coil, 3/4 in Connection, 2 x 20 x 20 in Filter, Steel, Finish: Galvanized, 40 to 115 deg F, 59-1/2 in H x 57-7/8 in W x 89 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$24,036.03 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating26
ApplicationBACnet Communication, LonWorks Communication, 24 volt Thermostat Compatibility and Zone Sensor Compatibility Applications
CFM Rating4000
Coil Rating25.6 sq-' Face Area, 23 FPI Outdoor, 10.9 sq-' Face Area, 20 FPI Indoor
Compressor TypeScroll
Connection Size3/4
Cooling BTU Rating118000
Dimensions59-1/2 " H x 57-7/8 " W x 89 " D
Drive TypeBelt Low Static
EER Rating11.2
Filter Size2 x 20 x 20
FinishGalvanized
Frequency Rating60
HP Rating1/3 hp Outdoor Fan
MaterialSteel
ModelRACDZR
Motor TypeBlower
Mounting TypePanel
Nominal Capacity10
Number of Speeds1
Number of Stages1
Phase3
Refrigerant TypeR-410A, HFC
Rotational Speed1075 rpm Outdoor Fan, 1725 rpm Indoor Fan
SeriesCommercial Achiever Series
Sound Level88
Temperature Rating40 to 115
Voltage Rating460
Wattage9.86
Additional Information
AHRI Certified|ASHRAE 90.1-2007 Compliant|cULus Listed
Features & Benefits
- Factory charged with R410A HFC refrigerant Wired and run tested Scroll compressors with internal line break overload and high pressure protection Model RACDZR has a single-stage compressor Convertible airflow - vertical downflow or horizontal sideflow Forkable base rails for easy handling and lifting Cooling operation up to 125 deg F ambient Micro channel evaporator and condenser coil Plus One® ServiceSmart package includes - Qwik-Change Flex-Fit Rack™, Qwik-Slide blower Assembly™, Qwik-Clean drain Pan™ Plus One® diagnostics with dual 7-segment LED display One-piece top cover and one-piece base pan with drawn supply and return opening 2-piece control door 1/4 turn fasteners on filter access door Color-coded and labeled wiring External lockable gauge ports TXV refrigerant metering system Solid core liquid line filter drier High pressure and low pressure/loss of charge protection Insulation encapsulated throughout entire unit High performance belt drive motor with variable pitch pulleys and quick adjust belt system
