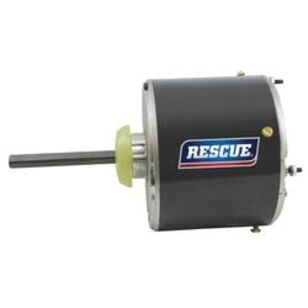

US Motors® 1860PEP PEP Condenser Fan Motor, 208 to 230 VAC, 1.4 A, 1/4 hp, 1075 rpm Speed, 1 ph -Phase, 60 Hz
US Motors® 1860PEP PEP Condenser Fan Motor, 208 to 230 VAC, 1.4 A, 1/4 hp, 1075 rpm Speed, 1 ph -Phase, 60 Hz
US Motors® PEP Condenser Fan Motor, 208 to 230 VAC, 1.4 A, 1/4 hp, 1075 rpm, 1 ph Phase, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 48Y Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, 2 Speed, Ball Bearing, Stud Mounting, F Insulation Class, Continuous, 6 Poles, 70 deg C, 5.6 in Dia x 9.6 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$572.18 / ea
Out of Stock
- Attributes
- Features & Benefits
Attributes
BrandRheem®
Amperage Rating1.4
Bearing TypeBall
Dimensions5.6 " Dia x 9.6 " L
Duty TypeContinuous
Frame Size48Y
Frequency Rating60
HP Rating1/4
Insulation ClassF
Motor Enclosure TypeTotally Enclosed Air Over
Mounting TypeStud
Number of Poles6
Number of Speeds2
Phase1
Rotation TypeReversible
Shaft Size1/2 " Dia x 5 " L
Speed Rating1075
Temperature Rating70
Voltage Rating208 to 230
Features & Benefits
- Automatic reset thermal overload protection Bearings have all angle thrust system Designed for use with 370 VAC capacitor Extreme high-ambient design Hubless lead end Drain holes both ends Capacitor 5 uF 76% efficiency design
US Motors® 1860PEP PEP Condenser Fan Motor, 208 to 230 VAC, 1.4 A, 1/4 hp, 1075 rpm Speed, 1 ph -Phase, 60 Hz
BrandRheem®
MFG #1860PEP
Keller #1017539
My Part ##
Last Ordered#
$572.18 / ea
