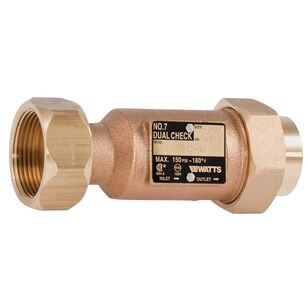

WATTS® LF7 Series 0792066 Dual Check Valve Backflow Preventer, 1-1/4 x 1 in, MTSF x FNPT, Lead-Free
WATTS® LF7 Series 0792066 Dual Check Valve Backflow Preventer, 1-1/4 x 1 in, MTSF x FNPT, Lead-Free
WATTS® Dual Check Valve Backflow Preventer, LF7 Series, 1-1/4 x 1 in Nominal, MTSF x FNPT Connection, 150 psi, Water Media, 4-9/16 in Inlet to Outlet Length, Copper Silicon Alloy Body, Lead-Free, 33 to 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$488.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicon Alloy
Connection TypeMTSF x FNPT
Inlet to Outlet Length4-9/16
MediaWater
Nominal Size1-1/4 x 1
Pressure Rating150
SeriesLF7 Series
Temperature Rating33 to 180
Shipping Dimensions (L x W x H)2.5" x 2.25" x 5.75"
Additional Information
ASSE 1024|Buy American Act Compliant|cCSAus B64.5
Features & Benefits
- Lead free body construction Compact design Union Connection Variety of end connections
Marketing Information
This 1 1/4 by 1 inch lead free dual check valve backflow preventer helps prevent the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. It consists of a lead free cast copper silicon alloy body with two plastic replaceable check valves, stainless steel springs, and 1 1/4 inch female meter thread swivel inlet by 1 inch NPT female threaded union outlet. This valve is designed for non-health hazard residential water system containment, continuous pressure applications. It is installed immediately downstream of the residential water meter, in a vertical or horizontal position. Minimum working pressure is 10 psi (69 kPa). Maximum working pressure is 150 psi (10 bar).
WATTS® LF7 Series 0792066 Dual Check Valve Backflow Preventer, 1-1/4 x 1 in, MTSF x FNPT, Lead-Free
BrandWATTS®
MFG #0792066
Keller #1018606
