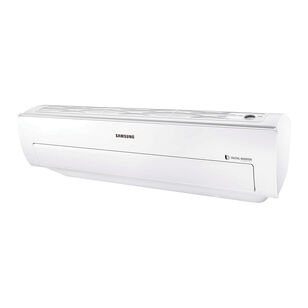

Samsung Whisper AM007MNVDCH/AA Indoor Unit With Galvanized Steel Mounting Plate, 208 to 230 V, 0.15 A, 1 ph -Phase
Samsung Whisper AM007MNVDCH/AA Indoor Unit With Galvanized Steel Mounting Plate, 208 to 230 V, 0.15 A, 1 ph -Phase
Samsung Whisper Indoor Unit, 208 to 230 V, 0.15 A, 27 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 7500 Btu/hr, 8500 Btu/hr, 141 cfm, 166 cfm, 191 cfm Rating, 1/4 in Flared Liquid, 1/2 in Flared Suction, 11/16 in ID Hose Drain Connection Type, 25 dB, 29 dB, 33 dB, Wall Mount, 29-1/2 in Overall Width, 9-13/16 in Overall Height, For Use With: Samsung DVM S, DVM S Water and DVM Eco AM*********/AA Systems, Additional Information: 9-11/16 in D Dimensions, R-410A Refrigerant
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,335.96Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional Information9-11/16 " D Dimensions, R-410A Refrigerant
Amperage Rating0.15
BTU Rating7500 Btu/hr, 8500 Btu/hr
CFM Rating141 cfm, 166 cfm, 191 cfm
Connection Type1/4 " Flared Liquid, 1/2 " Flared Suction, 11/16 " ID Hose Drain
Frequency Rating60
Mounting TypeWall
Number of Fan Speeds3
Overall Height9-13/16
Overall Width29-1/2
Phase1
Power Rating27
Sound Level25 dB, 29 dB, 33 dB
Suitable For Use WithSamsung DVM S, DVM S Water and DVM Eco AM*********/AA Systems
Voltage Rating208 to 230
Additional Information
cETLus Listed|UL 94
Features & Benefits
- Electro-static, washable, main filter as standard accessible from the front/top of unit Access to wire, pipe and drain connections via removable bottom panel for easier installation and service The unit shall have LED indicator lights, IR receiver and one-motorized louver High voltage terminal block temperature sensor to disable unit in the event overheating of power connection HIPS chassis certified to UL 94-V0 with galvanized steel mounting bracket The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan is a single, anti-bacterial, crossflow type Three-fan speed settings and auto setting The unit shall be operated via a wireless or wired remote control with DDC-type signal The unit shall integrate with the Samsung NASA Controls Network Solution Controls shall integrate with a BMS system Control wiring shall be two 16 AWG shielded wire
Marketing Information
Samsung's latest high wall indoor unit. Available in 5, 7.5, 9.5, 12, 15, 18, 24 and 28K Btu/hr capacities. Its unique triangular design has a wider inlet, so more air can be drawn in. Installation and service is also simplified by allowing access to pipes and wire connections from the bottom of the unit.
