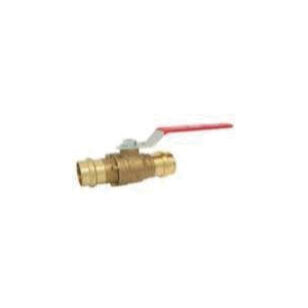

RWV® 5520AB-1-1/2 Ball Valve, 1-1/2 in, EzPress, Brass, 250 psi
RWV® 5520AB-1-1/2 Ball Valve, 1-1/2 in, EzPress, Brass, 250 psi
RWV® Ball Valve, 1-1/2 in Nominal, EzPress Connection, Full Port, 250 psi, Gas, Oil, Water Media, 4.94 in Inlet to Outlet Length, 2.72 in Top to Inlet Center, 1.46 in Opening, Handle Operator, 111 Cv Flow Coefficient (Cv), Material Standard: ASTM A36, ASTM B927 C27453, Brass Body, PTFE Seat, Brass Stem, Steel Handle, Brass Ball, EPDM Softgoods, Lead-Free, 15 to 160 deg F, 1.64 in ID
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$219.13 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
Ball MaterialBrass
Body MaterialBrass
Connection TypeEzPress
Dimensions1.64 " ID
Flow Coefficient (Cv)111
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length4.94
Lead-FreeYes
Material StandardASTM A36, ASTM B927 C27453
MediaGas, Oil, Water
Nominal Size1-1/2
Opening Size1.46
Operator TypeHandle
Port TypeFull
Pressure Rating250
Seat MaterialPTFE
Softgoods MaterialEPDM
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center2.72
Additional Information
MSS-SP-110|NSF/ANSI 61/372
Features & Benefits
- Dual EzPress ends Double O-ring Blowout-proof stem design Meet BAA requirement
Documents
Marketing Information
A ball valve is a quarter-turn valve that starts or stops the flow of fluids using a hollow, ball shaped insert. The valve can be quickly opened or closed with a 90 deg turn of the valve handle. With their relatively simple designs, ball valves are low-maintenance, long-lasting and exhibit minimal leakage if used properly. These valves are commonly used in fluid, gaseous and vapor applications that require bubble tight shut-offs. Although they are mostly used for low pressure applications, ball valves with metal seats are suitable for high-pressure, high-temperature uses.
RWV® 5520AB-1-1/2 Ball Valve, 1-1/2 in, EzPress, Brass, 250 psi
BrandRWV®
MFG #5520AB 1-1/2
Keller #1019295
My Part ##
Last Ordered#
$219.13 / ea
