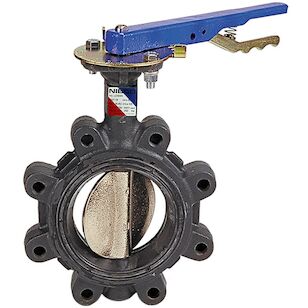

Name: LD31223 3 LUG BFV L/LK HNDL DUCT IRON
Brand: NIBCO®
SKU: 1019583
Price: 1154 USD
Availability: OutOfStock

Attributes

BrandNIBCO®

All Basic MaterialDuctile Iron

All Type Of ItemValve

End ConnectionLug

Height4.59"

IndustryPlumbing

Length14.13"

Made in USATrue

MaterialDuctile Iron

Mpg22

Nominal Pipe Size3

Nominal Size 13".

Prop 65 WarningYes

Seat Seal MaterialBuna-N Nitrile Rubber

Size Dimensions3".

System UseCommercial Plumbing, Compressed Air, HVAC, Industrial, Irrigation, Mining

Turns OperationsQuarter-Turn

Type Of ValveButterfly Valve

Valve Butterfly OperatorLever-Lock Handle

Valve End Connection TypeL - Lug

Valve Pressure Rating Psi250 PSI rated pressure

Weight11.68 lbs.

Width10.52"

Features & Benefits

Valve pressure rating 250 psi
Maximum 180 degreeF service
Lug style
NBR molded-in seat liner
Stainless steel disc
Stainless steel stem with copper bushings
Extended neck
Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
Not recommended for steam service
Designed to meet MSS SP-67
MSS SP-25 (markings)

Documents

Rubber-Seated-Butterfly-Valves-IOM.pdf

LDWD3x22BF.pdf

Marketing Information

The NIBCO ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The unique molded-in Buna-N seat liner with stainless steel disc is recommended for chemical applications the liner compatibility will permit. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO butterfly valves are backed by the NIBCO 5-year 125 Percent limited warranty.
