3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female Polymer Seat High Range 75-125 psi Meter Thread Connections
3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female Polymer Seat High Range 75-125 psi Meter Thread Connections
3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female Polymer Seat High Range 75-125 psi Meter Thread Connections
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,012.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi75 to 125
Buy American Act CompliantYes
Depth6.5"
Disc MaterialEPDM
Height3"
High Pressure Reduced Pressure Range75 to 125 psi
High Pressure Reduced Pressure Setting90 psi
IndustryPlumbing
Inlet Connection Size3/4"
Inlet Connection TypeUnion Joint
Inlet Thread TypeNPT
MaterialLead Free Copper Silicon Alloy
Maximum Temperature Deg F180
Maximum Working Pressure Psi300
Minimum Temperature Deg F33
Outlet Connection Size3/4"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
Prop 65 WarningYes
Seat MaterialPolymer
SeriesLF25AUB-Z3
Standard Reduced Pressure Setting Psi50
StrainerYes
Strainer MaterialStainless Steel
Thermal Expansion BypassYes
Valve StyleStandard
Weight4 lbs.
Width6.44"
Shipping Dimensions (L x W x H)6.5" x 6.44" x 3"
Features & Benefits
- Male tailpiece for water meter connections
- Sealed spring cage with stainless steel cage screws
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
Documents
Marketing Information

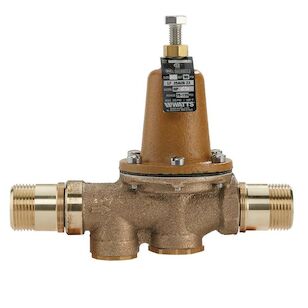

This 3/4 inch lead free brass water pressure reducing valve for high pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, male meter thread inlet by male meter thread outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). The high pressure range is 75 to 125 psi (518 to 863 kPa) with the standard setting at 90 psi (621 kPa).
3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female Polymer Seat High Range 75-125 psi Meter Thread Connections
BrandWATTS®
MFG #0009509
Keller #1019984
