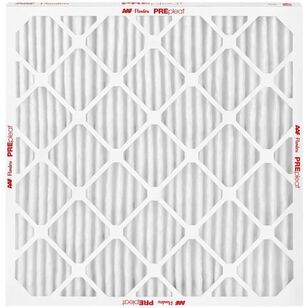

Flanders® PREpleat® M13 90013.022424 Air Filter, Pleated Filter, 24 in W, 24 in H, 2 in D, 13 MERV
Flanders® PREpleat® M13 90013.022424 Air Filter, Pleated Filter, 24 in W, 24 in H, 2 in D, 13 MERV
Flanders® PREpleat® M13 Air Filter, Pleated Filter, Synthetic Media, 24 in Width, 24 in Height, 2 in Depth, 13 MERV, 17.6 sq-ft Media Area, Pleats per Linear Feet: 29, 500 fpm Velocity, 0.3 in-WG Initial Resistance, 1 in-WG Final Resistance, 2000 cfm Air Flow Capacity, 23-3/8 in H x 23-3/8 in H x 1-3/4 in D Actual, 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$37.70 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandFlanders®
Actual Size23-3/8 " H x 23-3/8 " H x 1-3/4 " D
Air Flow Capacity2000
Depth2
Filter TypePleated
Final Resistance1
Height24
IndustryHVAC
Initial Resistance0.3
Media Area17.6
Media MaterialSynthetic
MERV13
Pleats per Linear Feet29
Rated Velocity500
Temperature Rating180
Width24
Additional Information
ANSI/AHRI 850-2013|ASHRAE 52.2|LEED Certified|UL 900
Features & Benefits
- Bi-component 100% synthetic high-loft MERV 13 media for high efficiency with low initial resistance Meets recommended minimum efficiency for filtration of airborne viruses without requiring new frames or other hardware 2-piece die-cut double-wall frame with diagonal grid supports and expanded-metal backed media for maximum strength High-capacity media configuration can be used to meet LEED Project Certification requirements for improved IAQ 1", 2" and 4" depths available Maximum operating temperature: 180 deg F (82 deg C)
Marketing Information
The PREpleat M13 pleated filter is significantly more efficient at capturing small particles than standard MERV 8 pleated filters. The improved efficiency and low airflow resistance make it possible to upgrade Indoor Air Quality (IAQ) while supporting compliance with LEED and CDC guidelines.
