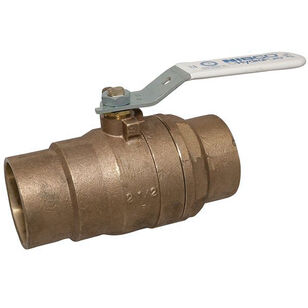

NIBCO S580-66-LF-1-1/2 BRZ BL VLV
NIBCO S580-66-LF-1-1/2 BRZ BL VLV
NIBCO® HydraPure® 2-Piece Ball Valve, S-580-66-LF Series, 1-1/2 in Nominal, Female Solder Cup Connection, Conventional Port, 600 psi, Water Media, 4.51 in Inlet to Outlet Length, 3.09 in Top to Inlet Center, 1-1/4 in Opening, Quarter-Turn Lever Handle Operator, Material Standard: ASTM A276, Bronze Body, RPTFE Seat, 316 Stainless Steel Stem, RPTFE Seal, Stainless Steel Trim, PTFE Packing, Stainless Steel Handle, 316 Stainless Steel Ball, Lead-Free, 300 deg F, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$549.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball Material316 Stainless Steel
Body MaterialBronze
Connection TypeFemale Solder Cup
Domestic/ImportDomestic
Handle MaterialStainless Steel
IndustryPlumbing
Inlet to Outlet Length4.51
Lead-FreeYes
Material StandardASTM A276
MediaWater
Nominal Size1-1/2
Opening Size1-1/4
Operator TypeQuarter-Turn Lever Handle
Packing MaterialPTFE
Port TypeConventional
Pressure Rating600
Seal MaterialRPTFE
Seat MaterialRPTFE
SeriesS-580-66-LF Series
Stem Material316 Stainless Steel
Temperature Rating300
Top to Inlet Center3.09
Trim MaterialStainless Steel
Warranty5 Year Limited
Shipping Dimensions (L x W x H)17.5" x 55.1" x 10.63"
Additional Information
ASME A112.4.14|CSA B125.14|cUPC Certified|IAPMO IGC-157|IAPMO/ANSI Z1157|ICC ES PMG Certified|MSS SP 110/145|NSF/ANSI/CAN 61/372-8
Features & Benefits
- Valve pressure rating 600 psi non-shock cold working pressure Silicon performance Bronze® alloy Blowout-proof stem NIBCO® HydraPure® lead-free markings on handle and body Dezincification-resistant
Marketing Information
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The two-piece valve features solder ends for easy installation. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, residential, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® Inc. 5 years 125% limited warranty.
NIBCO S580-66-LF-1-1/2 BRZ BL VLV
BrandNIBCO®
MFG #NJ83HXC
Keller #1020958
