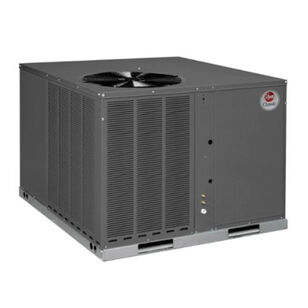

Rheem® Optimum Series RQPL-B049CK000 Heat Pump Package Unit, 4 ton Nominal, 48000 Btu/hr Cooling, 208/230 VAC
Rheem® Optimum Series RQPL-B049CK000 Heat Pump Package Unit, 4 ton Nominal, 48000 Btu/hr Cooling, 208/230 VAC
Rheem® Heat Pump Package Unit, RQPL-B, Classic Series, B049CK Model, 4 ton Nominal Capacity, 48000 Btu/hr Cooling BTU Rating, 208/230 VAC Voltage Rating, 26 A Amperage Rating, 1/3 hp Condenser, 3/4 hp Blower Motor HP Rating, 60 Hz Frequency Rating, 3 ph Phase, 1075 rpm Rotational Speed, (1) Scroll Compressor Type, 1600 cfm Rating, 14 SEER Rating, 11.5 EER Rating, Connection Type: 1 in Drain, R-410A Refrigerant Type, 35 A Fuse Rating, 78 dBA Sound Level, Direct Drive Type, Outdoor Coil - 16.32 sq-ft Face Area, 22 Fins/in, 2 Rows, Indoor Coil - 7.39 sq-ft Face Area, 15 Fins/in, 2 Rows Coil Rating, 1 x 24 x 24 in Filter Size, 47-1/2 in W x 52-7/16 in D x 41 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$14,196.99 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating26
CFM Rating1600
Coil RatingOutdoor Coil - 16.32 sq-' Face Area, 22 Fins/", 2 Rows, Indoor Coil - 7.39 sq-' Face Area, 15 Fins/", 2 Rows
Compressor Type(1) Scroll
Connection Type1 " Drain
Cooling BTU Rating48000 Btu/hr Cooling
Dimensions47-1/2 " W x 52-7/16 " D x 41 " H
Drive TypeDirect
EER Rating11.5
Filter Size1 x 24 x 24
Frequency Rating60
Fuse Rating35
HP Rating1/3 hp Condenser, 3/4 hp Blower Motor
IndustryHVAC
ModelB049CK
Nominal Capacity4
Phase3
Refrigerant TypeR-410A
Rotational Speed1075
SEER Rating14
SeriesRQPL-B, Classic
Sound Level78
Voltage Rating208/230
Additional Information
AHRI Certified, C/US UL Listed, ISO 9001:2015 Certified
Features & Benefits
- Scroll compressors for maximum efficiency and quiet operation The compressor is hermetically sealed and incorporates internal high temperature motor overload protection and durable insulation on the motor windings and is externally-mounted on rubber grommets to reduce vibration and noise Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes One-piece top with a deep flange to help keep water out of the unit Supply and return air openings feature a 1 in tall flange to prevent water migration into the ductwork Access panels have "weep holes" and channels to further help manage water run-off Easily accessible blower section complete with slide-out blower Refrigerant connections are conveniently located for easy service diagnostics and low pressure/loss of charge protection is standard on all models Condenser and evaporator coils feature enhanced fins for better heat transfer and rifled copper tubing for greater efficiency All units feature an internal trap on the condensate line eliminating the need for installing an onsite external trap Easily accessible control box, package heat pump utilizes demand defrost control which monitors the outdoor ambient temperature, outdoor coil temperature and compressor run-time to determine when a defrost cycle is required Thermal expansion valve for superior superheat control, reliability and energy efficiency at all operating conditions Filter drier standard on all models Rugged base rail included for improved installation and handling Reversing valve directs flow of refrigerant and reverses the refrigerant flow when heating is required No resistance heat
