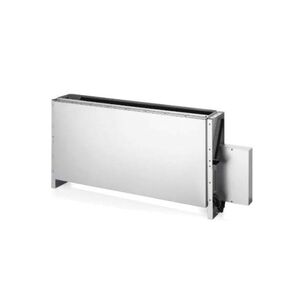

Samsung DVM S Series AM024JNFDCH/AA Concealed Floor Standing Indoor Unit, 208 - 230 V, 0.53 A, 1 ph -Phase, Steel
Samsung DVM S Series AM024JNFDCH/AA Concealed Floor Standing Indoor Unit, 208 - 230 V, 0.53 A, 1 ph -Phase, Steel
Samsung Concealed Floor Standing Indoor Unit, Series: DVM S Series, 208 - 230 V, 0.53 A, 60 Hz, 1 ph Phase, 3 Fan Speeds, 24000 Btu/hr Cooling, 27000 Btu/hr Heating, 390 cfm, 495 cfm, 550 cfm, Flared Connection, 32 dBA, 36 dBA, 40 dBA Sound Level, Steel, Finish: Galvanized, 8-5/8 in Overall Length, 48 in Overall Width, 23-9/16 in Overall Height, For Use With: DVM S Water and DVM Eco Systems
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,315.60Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Amperage Rating0.53
BTU Rating24000 Btu/hr Cooling, 27000 Btu/hr Heating
CFM Rating390 cfm, 495 cfm, 550 cfm
Connection TypeFlared
FinishGalvanized
Frequency Rating60
MaterialSteel
Number of Fan Speeds3
Overall Height23-9/16
Overall Length8-5/8
Overall Width48
Phase1
SeriesDVM S Series
Sound Level32 dBA, 36 dBA, 40 dBA
Suitable For Use WithDVM S Water and DVM Eco Systems
Voltage Rating208 - 230
Additional Information
cETLus Listed
Features & Benefits
- The indoor unit shall be the concealed type (no finished panel or cabinet) Electro-static, washable, pleated filters as standard (included with unit) High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection The heat exchanger shall be mechanically bonded fin to copper tube The unit shall be operated via a wireless or wired remote control with DDC type signal The unit shall integrate with the Samsung NASA Controls Network Solution
Documents
Marketing Information
The Samsung Concealed and Cased Floor Standing units offer the utmost in versatility to meet varied cooling and heating needs. These units effectively adjusts its performance to meet the needs of the space, such as high ceilings and lots of windows, while maintaining the desired temperature.
