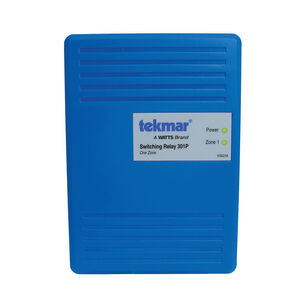

Tekmar® 301P Switching Relay, 115 V, 5 A
Tekmar® 301P Switching Relay, 115 V, 5 A
Tekmar® Switching Relay, 115 V, 5 A, 60 Hz, LED Display, NEMA 1 Enclosure, 32 to 122 deg F, 4-15/16 in Overall Width, 6-11/16 in Overall Height, For Use With: Low-Voltage Thermostat
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$162.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTekmar®
Amperage Rating5
Display TypeLED
Enclosure TypeNEMA 1
Frequency Rating60
Overall Height6-11/16
Overall Width4-15/16
Suitable For Use WithLow-Voltage Thermostat
Temperature Rating32 to 122
Voltage Rating115
Additional Information
cCSAus Certified
Features & Benefits
- Top, bottom and back conduit knockouts, fuse protects pump 20 VA transformer Thermal circuit breaker protects transformer Compatible with all low voltage thermostats, pump exercising Post purge, LED for power and zone Hinged cover
Marketing Information
The switching relay 301P connects to one thermostat and operates a circulator and boiler to provide heating to a hydronic heating system. The 301P includes optional exercising to prevent circulator seizure when not in use and optional post purge operation maximize energy savings.
