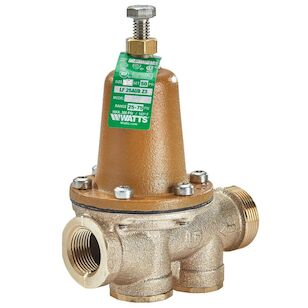

3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female Without Tailpieces
3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female Without Tailpieces
3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female Without Tailpieces
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$754.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi25 to 75
Depth6.5"
Disc MaterialEPDM
Height3"
IndustryPlumbing
Inlet Connection Size3/4"
Inlet Connection TypeUnion Joint
MaterialLead Free Copper Silicon Alloy
Maximum Temperature Deg F180
Maximum Working Pressure Psi300
Minimum Temperature Deg F33
Outlet Connection Size3/4"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
Prop 65 WarningYes
SeriesLF25AUB-Z3
Standard Reduced Pressure Setting Psi50
StrainerYes
Strainer MaterialStainless Steel
Thermal Expansion BypassYes
Valve StyleStandard
Weight2.86 lbs.
Width6.44"
Shipping Dimensions (L x W x H)6.5" x 6.44" x 3"
Features & Benefits
- Bypass feature controls thermal expansion pressure
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
- Adjustable reduced pressure setting
Marketing Information
This 3/4 inch lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, female NPT connections and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa).
3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female Without Tailpieces
BrandWATTS®
MFG #0009510
Keller #1023268
