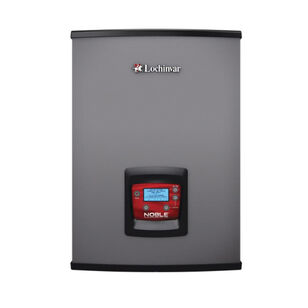

Lochinvar® NOBLE® NKB110N Fire Tube Boiler, 95 % AFUE, 110000 Btu/hr BTU, 1.4 gal Capacity, 120 V, 1 ph Phase
Lochinvar® NOBLE® NKB110N Fire Tube Boiler, 95 % AFUE, 110000 Btu/hr BTU, 1.4 gal Capacity, 120 V, 1 ph Phase
Lochinvar® NOBLE® Fire Tube Boiler, 120 V, 0.70 A, 60 Hz Frequency, 1 ph, 95 % AFUE, 110000 Btu/hr BTU, 1.4 gal Capacity, 30 psi Pressure, Universal Vent Connection, Gas, Water Fuel, Direct Vent, Chimney/Breeching/Vent Size: 3 in, Direct Spark Ignition, Net Rating: 89 mbh, 7.33 sq-ft Area, Wall Mounting, Stainless Steel, Dimensions: 24 in H x 17-1/4 in W x 18 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,597.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLochinvar®
AFUE Rating95
Amperage Rating0.70
Area7.33
BTU Rating110000
Capacity1.4
Chimney/Breeching/Vent Size3
Connection TypeUniversal Vent
Dimensions24 " H x 17-1/4 " W x 18 " D
Frequency Rating60
Fuel TypeGas, Water
Ignition TypeDirect Spark
IndustryHydronics
MaterialStainless Steel
Mounting TypeWall
Net Rating89
Phase1
Pressure Rating30
Vent TypeDirect
Voltage Rating120
Additional Information
AHRI Certified|ASME Certified|California Code Compliant|CSA Certified|ENERGY STAR Certified
Features & Benefits
- 10:1 turndown ratio Features SMART CONTROL™ operating control Outdoor reset control with outdoor air sensor Programmable system efficiency optimizers Three-pump control system pump, boiler pump, DHW pump Low voltage terminal strip - flow switch contacts, low water cut-off connection, system sensor contacts, outdoor air sensor contacts, cascade contacts Time clock for data logging - last 10 lockouts Low water flow safety control and indication Password security Built-in cascading sequencer for up to 8 units Modulating burner with 10:1 turndown - direct spark ignition, low NOx operation Condensate trap Automatic reset high limit Adjustable high limit with manual reset Zero clearances to combustible materials
Marketing Information
NOBLE® is easy to install, setup and service and promises to deliver the lasting reliability and serviceability the industry has come to expect from a Lochinvar® boiler.
