NIBCO S58566LFNS-2IN LF BRZ BLVLV
NIBCO S58566LFNS-2IN LF BRZ BLVLV

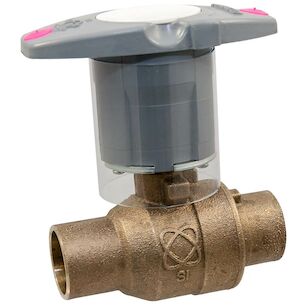

NIBCO® Performance Bronze® Ball Valve, S-585-66-LF Series, 2 in Nominal, Cup Connection, Full Port, 600 psi, Water Media, 6.02 in Inlet to Outlet Length, 3.56 in Top to Inlet Center, 2 in Opening, NIB-SEAL® Extended Handle Operator, Material Standard: ASTM B584, Silicon Bronze Body, PTFE Seat, Stainless Steel Stem, Stainless Steel Trim, PTFE Packing, Steel Handle, Stainless Steel Ball, Brass Softgoods, Lead-Free, 300 deg F, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,081.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialStainless Steel
Body MaterialSilicon Bronze
Connection TypeCup
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length6.02
Material StandardASTM B584
MediaWater
Nominal Size2
Opening Size2
Operator TypeNIB-SEAL Extended Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seat MaterialPTFE
SeriesS-585-66-LF Series
Softgoods MaterialBrass
Stem MaterialStainless Steel
Temperature Rating300
Top to Inlet Center3.56
Trim MaterialStainless Steel
Shipping Dimensions (L x W x H)8.75" x 6.38" x 4.25"
Additional Information
ALS Certified|ASME A112.4.14|CSA B125.14|cUPC Certified|IAPMO/ANSI Z1157|ICC-ES PMG Certified|MSS SP-110/145|NSF/ANSI/CAN 61/372
Features & Benefits
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure Vented ball Blowout-proof stem NIBCO® HydraPure® lead-free markings on handle and body Dezincification resistant
Documents
Marketing Information
The NIBCO® ball valve is made of lead-free* Silicon Performance Bronze™ alloy and has achieved the stringent NSF/ANSI/CAN 61 section 8 (Commercial Hot) and NSF/ANSI/CAN 372 listings. The two-piece valve provides bubble-tight shutoff at 600 PSI and is dezincification resistant. The ball valve includes reinforced PTFE seat rings with silicon bronze stem and ball, and is ideal for use in applications that deliver water for human consumption including residential and commercial construction.
NIBCO S58566LFNS-2IN LF BRZ BLVLV
BrandNIBCO®
MFG #NJ83HND
Keller #1024667
My Part ##
Last Ordered#
$1,081.00 / ea
