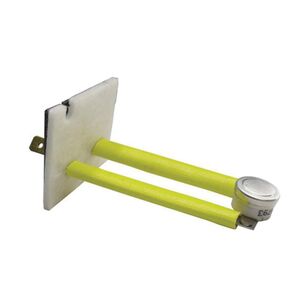

RUUD® 47-25349-03 Limit Control Switch, 120/230 VAC, 15/10 A, SPST - NC Switch, Yellow
RUUD® 47-25349-03 Limit Control Switch, 120/230 VAC, 15/10 A, SPST - NC Switch, Yellow
RUUD® Limit Control Switch, 120/230 VAC Voltage Rating, 15/10 A Amperage Rating, SPST - NC Switch Type, 150 deg F Open, 130 deg F Close Temperature Rating, Board 90 deg Strap Angle Mounting Type, Yellow
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$15.80 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating15/10
ColorYellow
Color/FinishYellow
IndustryHVAC
Mounting TypeBoard 90 deg Strap Angle
Switch TypeSPST - NC
Temperature Rating150 deg F Open, 130 deg F Close
Voltage Rating120/230
Features & Benefits
- 36T Series Enclosed disc face +/- 5 deg F open, +/- 7 deg F close tolerance temperature 3 in D maximum mounting insertion 1-5/8 x 1-7/16 in mounting board 20 deg F nominal temperature difference
Documents
RUUD® 47-25349-03 Limit Control Switch, 120/230 VAC, 15/10 A, SPST - NC Switch, Yellow
BrandRheem®
MFG #47-25349-03
Keller #1025416
My Part ##
Last Ordered#
$15.80 / ea
