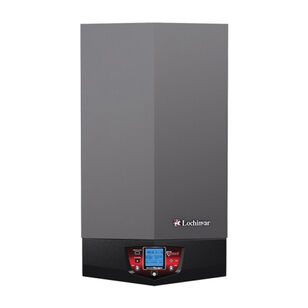

Lochinvar® KNIGHT® Fire Tube Boiler WHB085 WHB085N-2 Boiler With ECM Pump, 95 % AFUE, 85000 Btu/hr BTU, 2.2 gal Capacity
Lochinvar® KNIGHT® Fire Tube Boiler WHB085 WHB085N-2 Boiler With ECM Pump, 95 % AFUE, 85000 Btu/hr BTU, 2.2 gal Capacity
Lochinvar® KNIGHT® Fire Tube Boiler Boiler With ECM Pump, Model: WHB085, 120 V, 2.10 A, 60 Hz Frequency, 1 ph, 95 % AFUE, 85000 Btu/hr BTU, 2.2 gal Capacity, 8 gpm Flow Rate, 80 psi Pressure, MNPT Connection, Natural Gas Fuel, Direct Vent, Modulating Burner, Chimney/Breeching/Vent Size: 2 in, 79000 Btu/hr DOE Heating, Ignition System: Direct Spark, Direct Spark Ignition, Net BTU Rating: 69 mbh, Number of Boilers: 8, 8.33 sq-ft Area, Wall Mounting, Stainless Steel, Dimensions: 39-3/4 in H x 18-3/4 in W x 16 in D, Additional Information: 1/2 in Gas Connection, 1 in Water Connection
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,929.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLochinvar®
Additional Information1/2 " Gas Connection, 1 " Water Connection
AFUE Rating95
Amperage Rating2.10
Area8.33
BTU Rating85000
Burner TypeModulating
Capacity2.2
Chimney/Breeching/Vent Size2
Connection TypeMNPT
Dimensions39-3/4 " H x 18-3/4 " W x 16 " D
DOE Heating Capacity79000
Flow Rate8
Frequency Rating60
Fuel TypeNatural Gas
Ignition SystemDirect Spark
Ignition TypeDirect Spark
IndustryHydronics
MaterialStainless Steel
ModelWHB085
Mounting TypeWall
Net BTU Rating69
Number of Boilers8
Phase1
Pressure Rating80
Vent TypeDirect
Voltage Rating120
Additional Information
AHRI Certified|ASME Specified|CSA Certified|ENERGY STAR Certified
Features & Benefits
- Smart system digital operating control Three boiler set point temperature inputs Built-in cascading sequencer for up to eight boilers, with cascade redundancy Outdoor reset control with outdoor air sensor Programmable system efficiency optimizers Domestic hot water prioritization Building management system integration Access to BMS settings through graphic LCD display High voltage terminal strip Low voltage terminal strip Time clock Data logging Maintenance reminder Low water flow safety control and indication Password security Customizable freeze protection parameters Modulating burner with up to 10:1 turndown Universal vent adapter MNPT top and bottom water connections Automatic reset high limit
