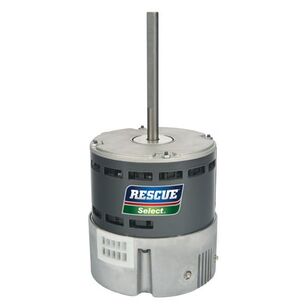

US Motors® 6630RS Blower Motor, 115 V, 6.4 A, 1/2 to 1/3 hp, 1050 rpm Speed, 1 ph -Phase, 50 Hz, 60 Hz, 48Y Frame
US Motors® 6630RS Blower Motor, 115 V, 6.4 A, 1/2 to 1/3 hp, 1050 rpm Speed, 1 ph -Phase, 50 Hz, 60 Hz, 48Y Frame
US Motors® Blower Motor, 115 V, 6.4 A, 1/2 to 1/3 hp, 1050 rpm, 1 ph Phase, 50 Hz, 60 Hz, Open Air Over Motor Enclosure, 48Y Frame, 1/2 in Dia x 3-1/2 in L Shaft, Reversible Rotation, Ball Bearing, Belly Band Mounting, Direct Drive, Continuous, B Insulation Class, 1 Service Factor, 40 deg C, 5.5 in Dia x 11.8 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$590.89 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating6.4
Bearing TypeBall
Dimensions5.5 " Dia x 11.8 " L
Drive TypeDirect
Duty TypeContinuous
Frame Size48Y
Frequency Rating50 Hz, 60 Hz
HP Rating1/2 to 1/3
IndustryHVAC
Insulation ClassB
Motor Enclosure TypeOpen Air Over
Mounting TypeBelly Band
Phase1
Rotation TypeReversible
Service Factor1
Shaft Size1/2 " Dia x 3-1/2 " L
Speed Rating1050
Temperature Rating40
Voltage Rating115
Additional Information
UL Listed
Features & Benefits
- Universal high-efficient ECM motor designed as a drop-in replacement for OEM constant torque motors Programmed torque values set to match OEM performance Uses equipment's existing connections, for ease of installation High-efficiency Smooth, quiet start-up and speed changes Potted electric module for superior moisture protection 6000 V surge protection Quiet operation Electronically protected
Documents
US Motors® 6630RS Blower Motor, 115 V, 6.4 A, 1/2 to 1/3 hp, 1050 rpm Speed, 1 ph -Phase, 50 Hz, 60 Hz, 48Y Frame
BrandRheem®
MFG #6630RS
Keller #1028671
