• Access valves on both the inlet and outlet sides to easily and accurately measure pressure
• The access valves on the SLD make it easy to determine if a pressure drop exists and to measure the amount of the drop
• Passes 500 hour salt spray test

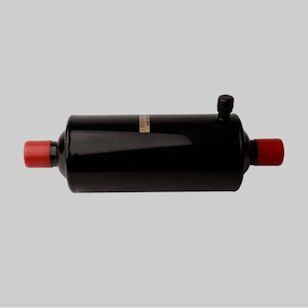

The solid core clean-up dryer was developed for use in a system suction line. The compact design incorporates a large outside diameter shell, which results in a shorter lay-in length and a larger core, which provides a greater filtration area for maximum operating efficiency. The core material has controlled porosity which effectively removes and holds a maximum amount of contaminants with a minimum of pressure drop. It collects and holds inorganic acids and other harmful contaminants from a motor burnout. This binding process protects the core from acid decomposition. Access valves on both the inlet and outlet sides make it easy-to measure pressure accurately. Occasionally, enough contaminant matter may collect in the filter core to cause a slight pressure drop. The access valves on the SLD make it easy-to determine if a pressure drop exists and to measure the amount of the drop. The original DSLD, solid core, XH-9 molecular sieve desiccant suction line filter dryer. High acid capacity. Low pressure drop exceptionally high-flow rates. Designed for system clean-up. 500 hr salt spray protection. Shortest system cut-out lengths allow installation in tight areas. 2 access valves simplify pressure drop measurement. Flare or solid copper sweat fittings.
