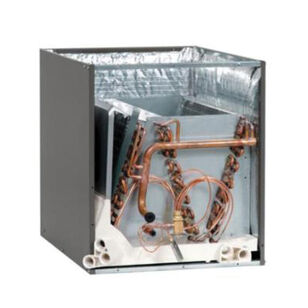

Rheem® RKNL, Classic Series RCFL-HM2617CC Evaporator Coil, Uncased Coil, 2 ton, 24000 Btu/hr, 900 to 1400 cfm, Copper
Rheem® RKNL, Classic Series RCFL-HM2617CC Evaporator Coil, Uncased Coil, 2 ton, 24000 Btu/hr, 900 to 1400 cfm, Copper
Rheem® Evaporator Coil, RCFL Series, 24000 Btu/hr BTU Rating, Multi-Position Configuration, 900 to 1400 cfm Rating, 16 SEER Rating, 2 ton Tonnage, R-410A Refrigerant Type, Uncased Coil Type, 3/8 in, 3/4 in Connection, Connection Type: Sweat, 2 Number of Rows, 5.7 sq-ft Face Area, Copper, Gray, 20 in H x 17-1/2 in W x 21-11/16 in D Dimensions, Gas, Oil Furnace Units Suitable For Use With
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,245.46 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
Attributes
BrandRheem®
BTU Rating24000
CFM Rating900 to 1400
Coil TypeUncased
ColorGray
ConfigurationMulti-Position
Connection Size3/8 ", 3/4 "
Connection TypeSweat
Dimensions20 " H x 17-1/2 " W x 21-11/16 " D
Face Area5.7
IncludesUniversal Duct Flanges, (2) Rows
MaterialCopper
Number of Rows2
Refrigerant TypeR-410A
SEER Rating16
SeriesRCFL Series
Suitable For Use WithGas, Oil Furnace Units
Tonnage2
Additional Information
AHRI Certified|ANAB Certified|cULus Listed
Features & Benefits
- Constructed of aluminum fins bonded to internally grooved copper tubing Tin plated copper tubing in the finned area for superior corrosion resistance in harsh environments Coils are tested at the factory with an extensive refrigerant leak check Ideally suited for new installations or add-on air-conditioning Feature two sets of 3/4 in NPT condensate drain connections for ease of connection Condensate drain pan is constructed of high-grade, heat-resistant, corrosion-free thermal-setting material Compatible with germicidal light system Bi-directional airflow eliminates the need to switch any internal components from horizontal left to right Unique drain pan design maximizes application flexibility and condensate removal Third design variation
