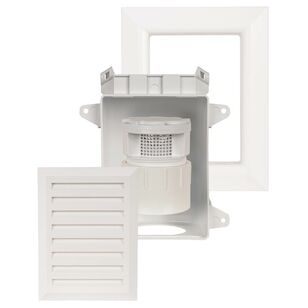

SIOUX 696-12P 2IN TURBO VENT
SIOUX 696-12P 2IN TURBO VENT
Sioux Chief Turbovent™ Air-Admittance Valve, Series: 696 Series, 1-1/2 in Connection, MIP x NPT Connection, DFU Rating: 8/24 DFU Stack, 20/160 DFU Branch, 0 to 13 psi, SCH 40, -40 to 150 deg F, ABS, White, 2-3/4 in Overall Width, 2-1/8 in Overall Depth, Domestic/Import: Domestic, Additional Information: 7-1/4 in H x 5-3/4 in W Frame
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$37.75 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Additional Information7-1/4 " H x 5-3/4 " W Frame
ColorWhite
Connection Size1-1/2
Connection TypeMIP x NPT
DFU Rating8/24 DFU Stack, 20/160 DFU Branch
Domestic/ImportDomestic
MaterialABS
Overall Depth2-1/8
Overall Width2-3/4
Pressure Rating0 to 13
Schedule RatingSCH 40
Series696 Series
Temperature Rating-40 to 150
Additional Information
ASSE 1050/1051|ASTM D2661/D2665|IAPMO Certified|IPC 2021 918.1|IRC 2021 P3114.1|UPC 2021 Section 301.3
Features & Benefits
- Patent #7,360,553 & #7,735,511 Air admittance valve opens during drainage, then seals tight after ABS access box with frame and louvered cover provides air flow and allows for inspection and maintenance Paintable frame and cover
Documents
Marketing Information
Sioux Chief 696 series TurboVent air-admittance valves with access box shall be installed as vent terminal for secondary venting within the plumbing system. Valve shall connect to DWV system via Sch. 40 adapter, and be accessible after finish wall is installed. Valve shall incorporate an actuating device which spins upon activation to keep the sealing surface clean and free of debris. During drainage, actuating device shall raise under negative line pressure to allow optimal air flow into the DWV system. Valve shall provide a positive seal at 0 psi and under any positive line pressure to prevent sewer gasses from entering the living space.
SIOUX 696-12P 2IN TURBO VENT
BrandSioux Chief
MFG #696-12P
Keller #1030396
My Part ##
Last Ordered#
$37.75 / ea
