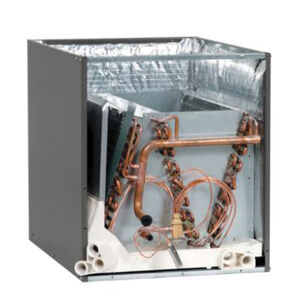

Rheem® RCFL-HM4821CC Cased Evaporator Coil, Cased Coil, 4 ton, 42000 to 48000 Btu/hr, 900 to 1400 cfm, Copper
Rheem® RCFL-HM4821CC Cased Evaporator Coil, Cased Coil, 4 ton, 42000 to 48000 Btu/hr, 900 to 1400 cfm, Copper
Rheem® Cased Evaporator Coil, RCFL Series, 42000 to 48000 Btu/hr BTU Rating, 60 Hz Frequency Rating, 900 to 1400 cfm Rating, 13 to 16 SEER Rating, 4 ton Tonnage, R-410A Refrigerant Type, 2-Row, 16 FPI, 8.55 sq-ft Coil Rating, Cased Coil Type, 3/8 in, 3/4 in, 7/8 in Connection, Connection Type: Sweat, Copper, Gray, 25-7/8 in H x 21 in W x 21-11/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,521.04 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
ApplicationFor air conditioner, heat pump, gas and oil furnaces
BTU Rating42000 to 48000
CFM Rating900 to 1400
Coil Rating2-Row, 16 FPI, 8.55 sq-'
Coil TypeCased
ColorGray
Color/FinishGray
Connection Size3/8 ", 3/4 ", 7/8 "
Connection TypeSweat
Dimensions25-7/8 " H x 21 " W x 21-11/16 " D
Frequency Rating60
MaterialCopper
Refrigerant TypeR-410A
SEER Rating13 to 16
SeriesRCFL Series
Tonnage4
Additional Information
C/US UL Listed, ISO 9001:2008 Certified
Features & Benefits
- Constructed of aluminum fins bonded to internally grooved copper tubing Tin plated copper tubing in the finned area for superior corrosion resistance in harsh environments Coils are tested at the factory with an extensive refrigerant leak check Ideally suited for new installations or add-on air-conditioning Feature two sets of 3/4 in NPT condensate drain connections for ease of connection Condensate drain pan is constructed of high-grade, heat-resistant, corrosion-free thermal-setting material Compatible with germicidal light system Bi-directional airflow eliminates the need to switch any internal components from horizontal left to right Unique drain pan design maximizes application flexibility and condensate removal Product generation Third design variation
Rheem® RCFL-HM4821CC Cased Evaporator Coil, Cased Coil, 4 ton, 42000 to 48000 Btu/hr, 900 to 1400 cfm, Copper
BrandRheem®
MFG #RCFL-HM4821CC
Keller #1030534
