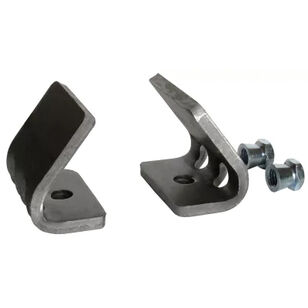

AFCON® 0502001120 Structural Brace Attachment, 2220 lbf Load, Steel
AFCON® 0502001120 Structural Brace Attachment, 2220 lbf Load, Steel
AFCON® Structural Brace Attachment, 2220 lbf Load Capacity, Steel, 3 in Overall Width, 2-3/4 in Overall Height, Additional Information: Load Rating: 740 lbf cULus Listing per ANSI/UL 203a Parallel to Flange, 1370 lbf cULus Listing per ANSI/UL 203a Perpendicular to Flange, 1265 lbf cULus for NFPA Parallel to Flange, 2015 lbf cULus for NFPA Perpendicular to Flange, 1190 lbf FM Parallel to Flange, 2220 lbf FM Perpendicular to Flange
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$141.36 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSCI®
Additional InformationLoad Rating: 740 lbf cULus Listing per ANSI/UL 203a Parallel to Flange, 1370 lbf cULus Listing per ANSI/UL 203a Perpendicular to Flange, 1265 lbf cULus for NFPA Parallel to Flange, 2015 lbf cULus for NFPA Perpendicular to Flange, 1190 lbf FM Parallel to F
Load Capacity2220
MaterialSteel
Overall Height2-3/4
Overall Width3
Additional Information
cULus Listed|FM 1950-10|FM 1950-13|FM Approved|NFPA 13|UL 203A|UL 203
Features & Benefits
- Shear-off nuts provide a visual indication that the desired torque value has been achieved
Documents
AFCON® 0502001120 Structural Brace Attachment, 2220 lbf Load, Steel
BrandSCI®
MFG #0502001120
