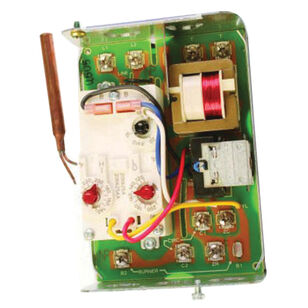

Honeywell L8124C1003 Triple Aquastat Relay, SPST, Horizontal Mounting
Honeywell L8124C1003 Triple Aquastat Relay, SPST, Horizontal Mounting
Honeywell Triple Aquastat Relay, 120 VAC, 60 Hz, 200 psi on Outside of Immersion Well, 100 psi on Capsule If Inserted Directly Maximum Safe Operating, Quick Connect/Screw, SPST, Horizontal Mount, 130 to 240 deg F High Limit, 110 to 220 deg F Low Limit; 10 deg F Fixed High Limit; 10 to 25 deg F Adjustable Low Limit Differential, 6-1/8 in L x 3-1/16 in W x 4-3/8 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$937.69Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Connection TypeQuick Connect/Screw
Contact ConfigurationSPST
Dimensions6-1/8 " L x 3-1/16 " W x 4-3/8 " H
Frequency Rating60
IndustryHVAC
Mounting TypeHorizontal
Pressure Rating200 psi on Outside of Immersion Well, 100 psi on Capsule If Inserted Directly Maximum Safe Operating
Temperature Rating130 to 240 deg F High Limit, 110 to 220 deg F Low Limit; 10 deg F Fixed High Limit; 10 to 25 deg F Adjustable Low Limit Differential
Voltage Rating120
Additional Information
CSA Certified|UL Listed
Features & Benefits
- Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service Require 24 VAC thermostat with heat anticipator set at 0.2 A (plus current draw of gas valve on L8124E) Include diaphragm powerhead and micro switch assembly that respond to temperature changes in boiler water Mount directly to boiler Provide multi-zone control by using a separate circulator and R845 relay for each zone Electrical burner rating: at full load: 7.4 A at 120 VAC, 3.7 A at 240 VAC line voltage; at locked rotor: 44.4 A at 120 VAC, 22.7 A at 240 VAC line voltage Electrical circulator rating: 7.4 A at 120 VAC, 3.7 A at 240 VAC full load; 44.4 A at 120 VAC, 22.2 A at 240 VAC locked rotor 1-1/2 in D insulation 0 - 95% RH non-condensing environmental conditions
Documents
Honeywell L8124C1003 Triple Aquastat Relay, SPST, Horizontal Mounting
BrandHoneywell
MFG #L8124C1003/U
Keller #103156
