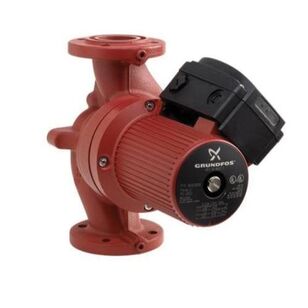

Grundfos UP Series 96633578 Circulator Pump, 380 W, 115/230 V, 1.9/3.5 A, 60 Hz, 145.04 psi Max Pressure
Grundfos UP Series 96633578 Circulator Pump, 380 W, 115/230 V, 1.9/3.5 A, 60 Hz, 145.04 psi Max Pressure
Grundfos Circulator Pump, Series: UP Series, Model: UP 53-45 F B, 14.76 ft Maximum Head, 380 W Power, 115/230 V, 1.9/3.5 A, 60 Hz Frequency, 145.04 psi Maximum, 53 mm Connection, Flange Connection, 1 ph Phase, 14 to 230 deg F, X4D Enclosure, Axial, Radial Bearing, Bronze/Stainless Steel, Dimensions: 12.86 in L x 9.88 in H, Additional Information: 9-7/8 in L Port-to-Port
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,088.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional Information9-7/8 " L Port-to-Port
Amperage Rating1.9/3.5
Bearing TypeAxial, Radial
Connection Size53
Connection TypeFlange
Dimensions12.86 " L x 9.88 " H
Enclosure TypeX4D
Frequency Rating60
IndustryPlumbing
MaterialBronze/Stainless Steel
Maximum Head14.76
Maximum Pressure145.04
ModelUP 53-45 F B
Phase1
Power Rating380
SeriesUP Series
Temperature Rating14 to 230
Voltage Rating115/230
Additional Information
AISI 304 Specified|cUL Listed|DIN W.-Nr. 1.4301 Specified|DIN W.-Nr. 2.1176.01 Specified
Features & Benefits
- 1-speed motor Ceramic radial bearings Carbon axial bearing Stainless steel rotor can, bearing plate and rotor cladding Aluminum alloy stator housing Bronze pump housing Stator with built-in thermal switch
Marketing Information
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible. The motor is a 1 ph motor. The pump is supplied with a standard module in the terminal box. The standard module is to be connected to the mains supply via external contactor.
Grundfos UP Series 96633578 Circulator Pump, 380 W, 115/230 V, 1.9/3.5 A, 60 Hz, 145.04 psi Max Pressure
BrandGrundfos
MFG #96633578
Keller #1032308
