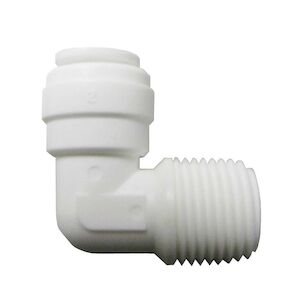

1/4 IN OD x 1/8 IN MNPT Mini Male Elbow
1/4 IN OD x 1/8 IN MNPT Mini Male Elbow
1/4 IN OD x 1/8 IN MNPT Mini Male Elbow
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$11.25Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Depth1"
FinishPlastic
Height5.25"
IndustryPlumbing
Inlet Connection Size1/4"
Inlet Connection TypePush to connect
MaterialPolypropylene
Maximum Working Pressure Psi150
Maximum Working Temperature Deg F70
Minimum Temperature Deg F33
Outlet Connection Size1/8"
Outlet Connection Thread TypeNPT
Outlet Connection TypeMale Threaded
SeriesMale Elbow 1019
Weight0.03 lbs.
Width3"
Shipping Dimensions (L x W x H)1" x 3" x 5.25"
Features & Benefits
- No tools required for installation or removal
- Rotates under pressure after installed for high flexibility during installation
- Can be used for hot and cold water applications, including behind the wall applications
- Works with plastic or soft copper tubing
- Zero-leak connections
- 25-year limited warranty
Documents
Marketing Information
This 1/4 inch OD x 1/8 inch MNPT AquaLock(TM) mini male elbow works with plastic or soft copper tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
1/4 IN OD x 1/8 IN MNPT Mini Male Elbow
BrandWATTS®
MFG #17103008
Keller #1033668
